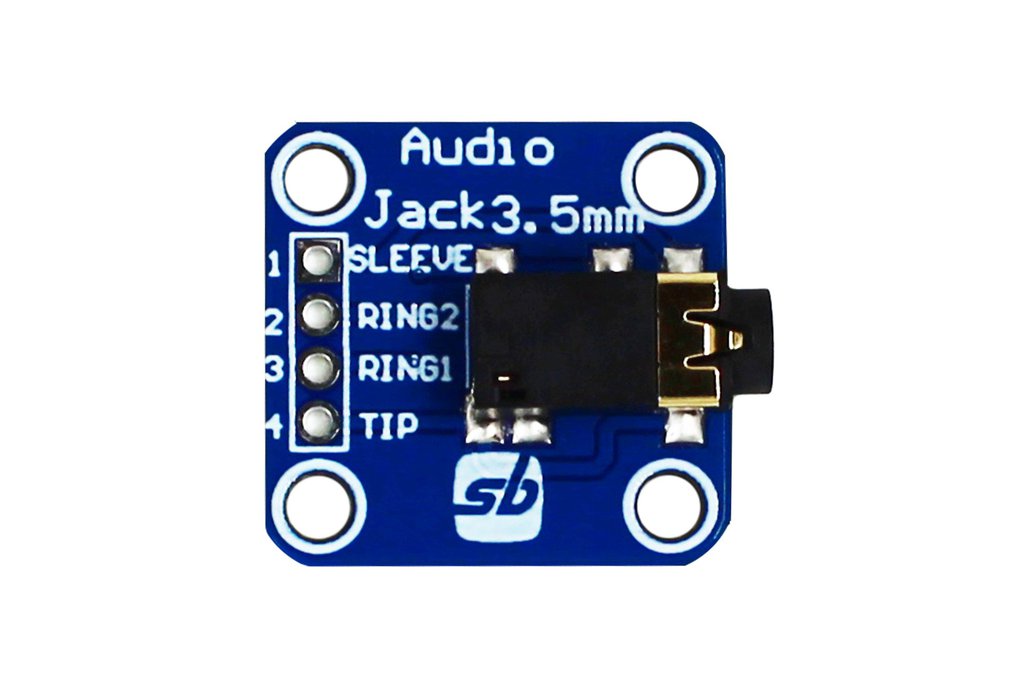

The 3.5mm Audio jack breakout simplifies the interfacing of audio input and output signals through the standard 3.5mm audio jack and TRRS (Tip, Ring, Ring, Sleeve) signals. It provides convenient access to the audio connections, making it easier for users to integrate external audio devices such as microphones, speakers, headphones, and audio recording equipment with their host devices, such as computers, smartphones, or DIY electronics projects.

Breakout features standard 0.1’’ Header breakout of TRRS (Tip, Ring, Ring, Sleeve) audio pins of 3.5mm Jack. A TRRS 3.5mm audio jack breakout allows access to four audio channels: left audio, right audio, microphone input, and ground. With its versatility and ease of use, the 3.5mm jack breakout serves as an essential tool for audio experimentation, prototyping, and custom audio solutions in various applications.

Key Features:

• Compact size and easy-to-use design
• Tip, Ring, Ring, Sleeve pins breakout Standard 0.1” header spacing, so breadboard compatible design

Specifications:

• Connector Type: 3.5mm headphone jack
• Voltage Rating (Max): 30V
• Current Rating (Max): 0.5A
• Operating Temperature Range: -20℃~+70℃
• Weight : 3g (0.1oz)

Box Content:

• 1 x Audio Jack 3.5mm Breakout
