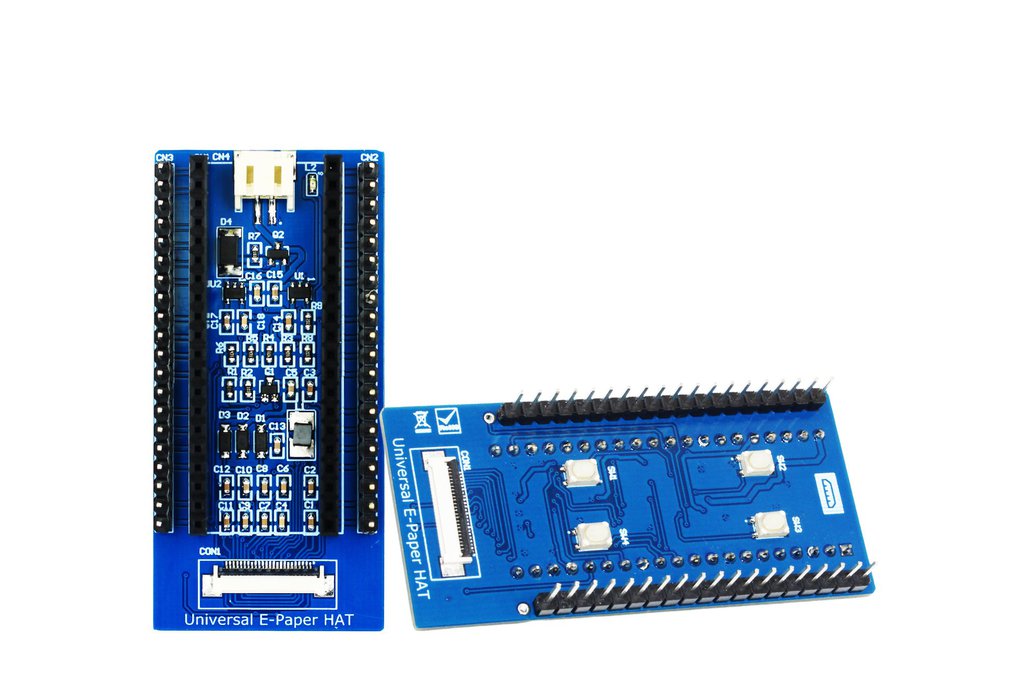

Universal E-Paper HAT is based on the Raspberry Pi Pico which can be attached to any size of E-paper available in the market.

This universal HAT works with both the Raspberry Pi Pico and the Raspberry Pi Pico W. It has two FPC connectors on each side for attaching E-Paper.

Features:

• Compatible with both Raspberry Pi Pico/Pico W
• Onboard 4 programmable buttons
• Can be used to drive various SPI interface e-Papers
• Support E-paper Display with color Black-White-Red type
• 7V Battery Support
• RP2040 GPIO Pins breakout for interfacing with other peripheral

Specifications:

• Input voltage: 5V
• Operating voltage of GPIO pins: 3.3V
• Drag-and-drop programming using mass storage over USB
• Max Grayscale: 2
• Operating temperature: -40 to 85 degrees (without E-paper)
• Operating temperature: 0 to 40 degrees (with E-paper attached)
• Storage Temperature: -25 to 60 degrees (with E-paper attached)
• RoHS-compliant product

Kit Content:

• 1 x Universal E-Paper HAT for Pico

Note: Raspberry Pi Pico is not included!
