What is it?

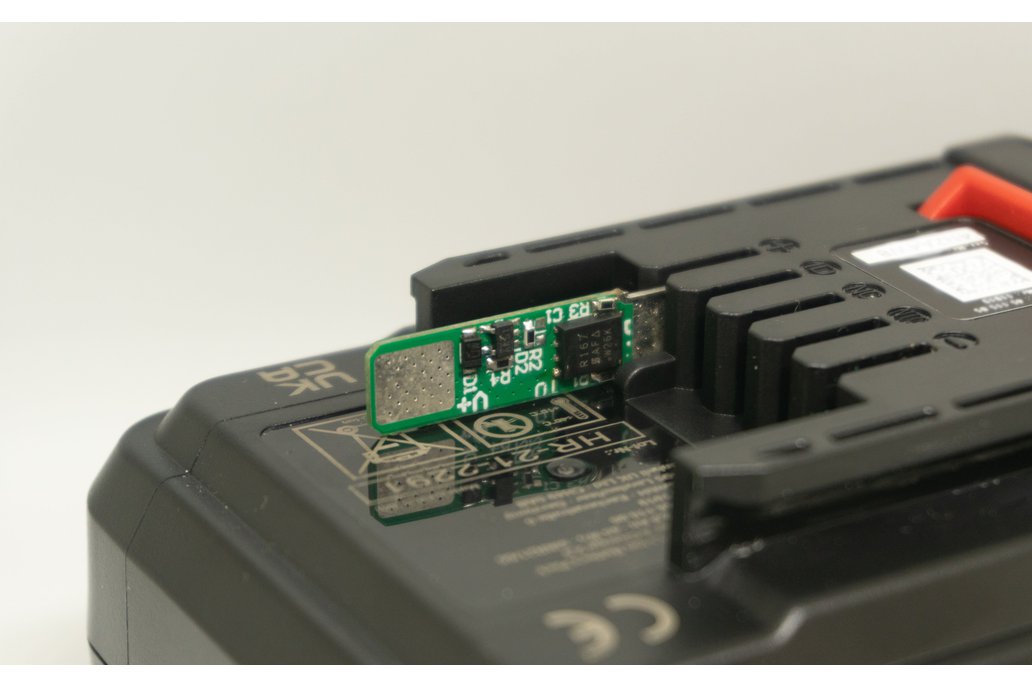

Battery cutoff protection, compatible with any type of battery with a rated voltage from 3.6V (1S) to 22.2V (6S). This voltage is most suitable for Lead-acid and LiFePo4 batteries (other voltages available on demand, with instructions provided for further customization).

Why did you make it?

I created this because I needed lightweight battery protection with a small footprint and high current throughput, capable of being integrated into 3D-printed adapters for standard power tool batteries.

What makes it special?

It features built-in hysteresis, a small footprint, and lightweight design, while still being able to support high power draws.

Specifications:

• Built-in hysteresis to compensate for voltage drop at high currents.
• Max input voltage (Vin): 25.2V (6S)
• Continuous current (Ic): 40A
• Max pulse current (Ip): 80A

Battery cutoff and reconnect voltages can be adjusted by replacing a maximum of three 0603 resistors (default is for 5S; specify during checkout for different cutoff voltage setpoints).

• Cutoff at 11.7V (2.34V/Cell)
• Reconnect at 12.5V (2.5V/Cell)
• Quiescent current (Iq): <120uA
• High-side resistance (RdsOn): <10mOhm
• Dimensions: 38x8x2mm
• Weight: 1g

Note: This is not a BMS but an under-voltage cutoff to protect packs with an integrated or external BMS without cutoff protection. It includes a TVS diode on the output to limit inrush currents from inductive loads. !!! It does not offer over-voltage, over-current, or over-temperature protection !!!

While the integrated diode allows for a charge current of 20A, always use a designated charger suitable for the battery configuration and chemistry. Follow all lithium battery charging safety guidelines:

Never leave a charging battery unattended.
Always ensure the battery is on a non-flammable surface.
Use a fire-resistant bag, ensuring the flap is sealed during charging.
