Description

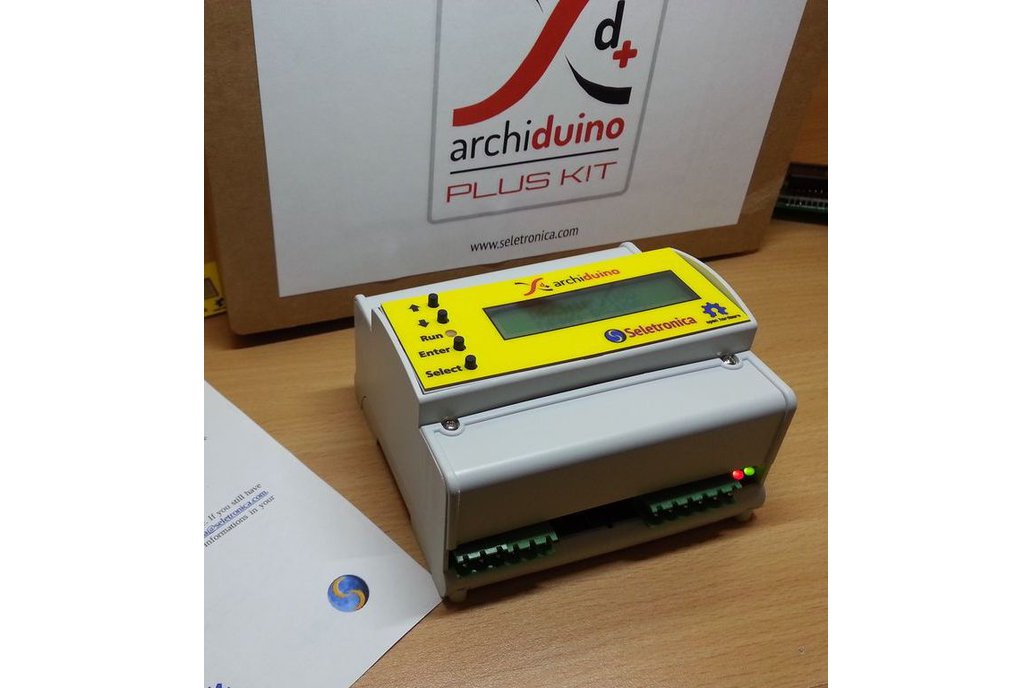

Archiduino KIT is a modular programmable controller, 100% software compatible with Arduino. The strength of Archiduino is represented by the plurality of interface, I/O and signal conditioning modules at his disposal which can be simultaneously mounted. Furthermore, Archiduino has been designed looking at the industrial environment, so it’s fully protected from ESD, RF and EMI and it’s certified according to strict IEC / CEI parameters. This Archiduino KIT was created with the aim to give the opportunity to test the potential of Archiduino system at a very affordable price.

Details

The Base Board, in addition to housing the Archiduino CPU Board, is equipped with 12 slots in which you can insert as many SnipCards. The SnipCards are mounted vertically, in order to obtain a compact device. The main objective, on which is based Archiduino, was to obtain a programmable controller flexible and easily adaptable to different needs. Often we use dedicated cards on which are lacking of resources while others remain unused. This can not happen with Archiduino boards since the SnipCards can be mounted in choosing them according to your needs.

Besides the possibility to occupy the slot with a SnipCard, it’s alternatively possible to mount up to 8 power relays (max 36V / 4A), or up to 20 optocouplers. The eight power relay sockets could be populated with two optocouplers at same time (useful when you need a relay actuator with optocoupled feedback). Moreover, this programmable controller is designed to be inserted in a modular DIN rail (6 modules). This solution allows you to move from the development phase to the final use of the software in the field with a simplicity and speed not found in other programmable platforms.

The CPU mounts onboard: n. 1 RTC clock (without battery, it should be requested apart); n. 1 precision voltage reference (2,5V) n. 1 EEPROM 2K I2C and it’s prepared to mount, as options: n. 1 RTC lithium backup battery; n. 1 micro SD card slot; larger EEPROM sizes.

Technical Specifications SPECIFICATION VALUE Case Bare boards Dimensions LxHxP 102 x 98 x 40 mm. Weight 70 gr. Connections 36 (5 mm. pitch) Slots 12 Channels per slot 2/3 Total I/Os 36 Supply voltage 12 Vdc Logic voltage 5Vdc

Package content

Quantity SKU Description 1 AD-CP-002 CPU Board 1284 with AVR ATmega1284 16 MHz 1 AR-BB-001 Base Board 3 AR-KM-001 Connectors kit 1 AR-KC-001 Power supply cable 1 AD-LC-001 Display LCD 16x2 I2C PCF8574 1 AR-BOX-100 DIN Rail Case 6 modules with cover panel 1 OP-MNT-001 Assembly + Test service

Notes: the KIT is supplied ASSEMBLED and TESTED; connectors are soldered on the Base Board: please specify where do you need them; the kit does not include external 12Vdc power supply; the kit does not include USB micro (type B) cable required for firmware programming. Please check our shop or take a look to comparison tables (as the one above). Also feel free to contact us for any question.

The price does not include VAT and customs taxes.
