Breadboard adapter for SMD components
I'm sure everybody knows the problem: Parts are getting smaller and smaller, either you already have the smd version because you used it on a real project, or it…
I'm sure everybody knows the problem: Parts are getting smaller and smaller, either you already have the smd version because you used it on a real project, or it is not even available anymore with throughhole leads.
With this (and all other adapters in my shop) you are able to solder leads onto nearly all leadless components, making them suitable for easy breadboard prototyping
Footprints

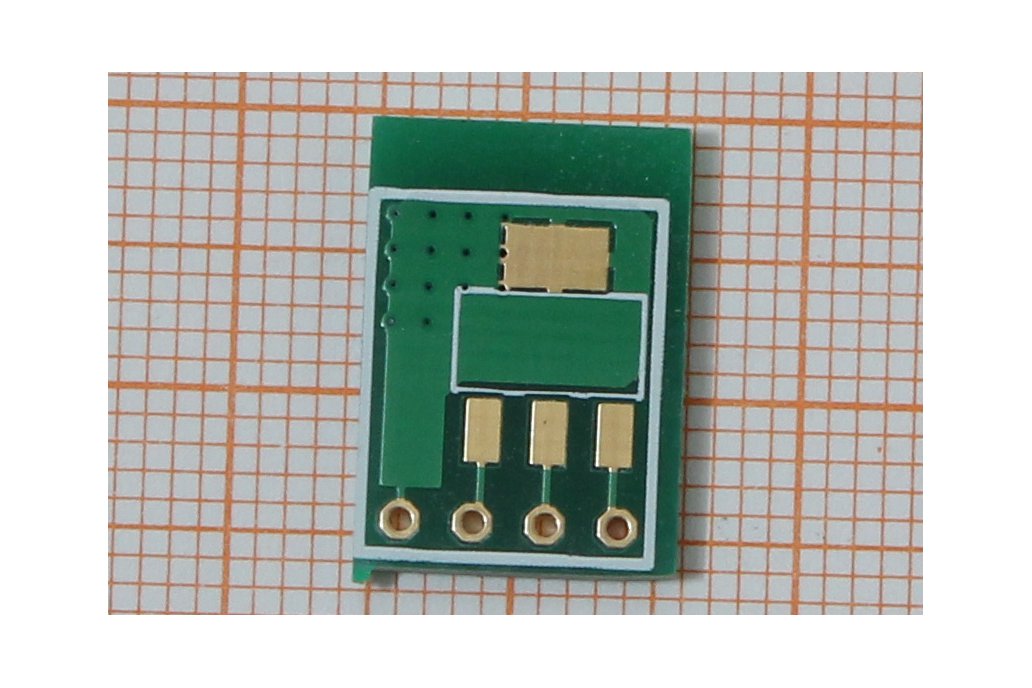

SOT223
various on backside (nearly all two-contact smd parts). Sadly I forgot to mask out the solder mask on the back, so you need to remove it eg with a glass fibre pencil.
Properties
Standard FR4 1,6mm base material, of course lead free and RoHS compliant. The ENIG gold finish produces a nice, smooth and very good solderable surface with great oxidation resistance.
Review
There is a small review in the mailbag section of Dave Jone's EEVBlog #573, as I sent hime some after he complained about ugly pin spacing on one of his other adapters.
