SMD Adapter SOT23, SOT323 or SC75

Name: SMD Adapter SOT23, SOT323 or SC75
SKU: 1852
Price: 1.00 USD
Availability: OutOfStock

Designed by sheepelectric in Germany



$1.00

Out of Stock

Sold out since Nov 16, 2016

SMD Adapter SOT23, SOT323 or SC75

Breadboard adapter for SMD components I'm sure everybody knows the problem: Parts are getting smaller and smaller, either you already have the smd version because you used it on a real project, or it…

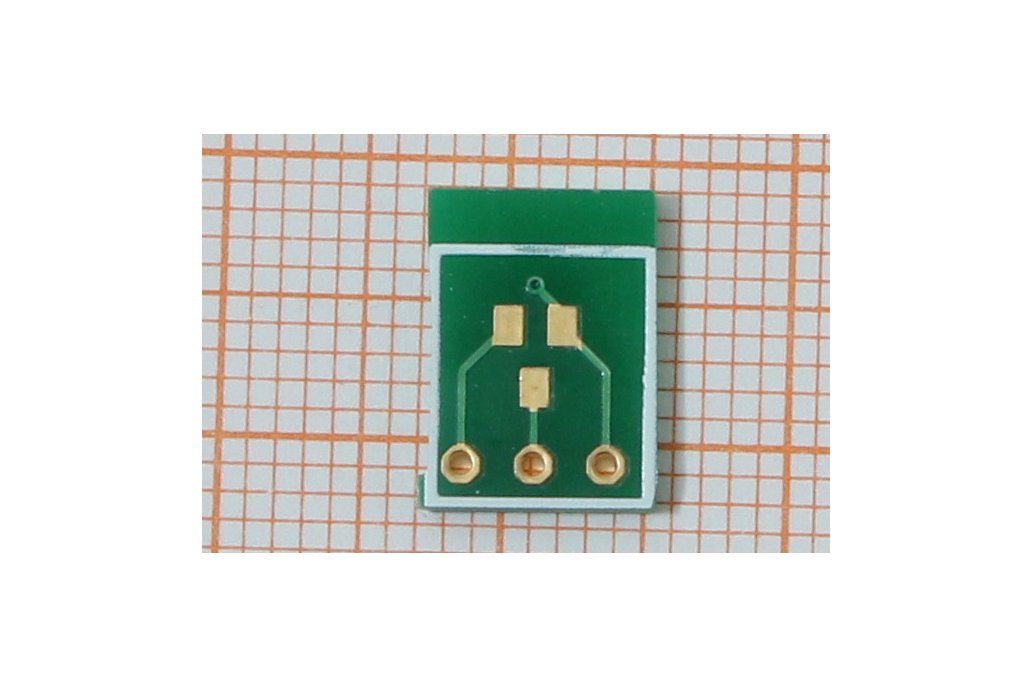

Breadboard adapter for SMD components

I'm sure everybody knows the problem: Parts are getting smaller and smaller, either you already have the smd version because you used it on a real project, or it is not even available anymore with throughhole leads.

With this (and all other adapters in my shop) you are able to solder leads onto nearly all leadless components, making them suitable for easy breadboard prototyping

Footprints

SOT23
SOT323
SC75

Properties

Standard FR4 1,6mm base material, of course lead free and RoHS compliant. The ENIG gold finish produces a nice, smooth and very good solderable surface with great oxidation resistance.

Review

There is a small review in the mailbag section of Dave Jone's EEVBlog #573, as I sent hime some after he complained about ugly pin spacing on one of his other adapters.
