Graphics card for the RC2014 with TMS emulator AND 80-col colour terminal, HDMI output, USB keyboard input. Assembled and tested
Designed by MIDI IN in United KingdomNo shipping info available.
Set destination country to see options
Shipping to starts at
Free shipping is available to !
Ships from
This item does not ship to .
More Info
Sign up to get notified when this product is back in stock!
Note: This is now TMSEMU3 which has an 80-column colour terminal mode with ANSI code support as well as TMS emulation; both with HDMI/DVI out and USB keyboard input. These modes are switchable automa…
Read More…This is now TMSEMU3 which has an 80-column colour terminal mode with ANSI code support as well as TMS emulation; both with HDMI/DVI out and USB keyboard input. These modes are switchable automatically or manually with a physical switch or jumper.

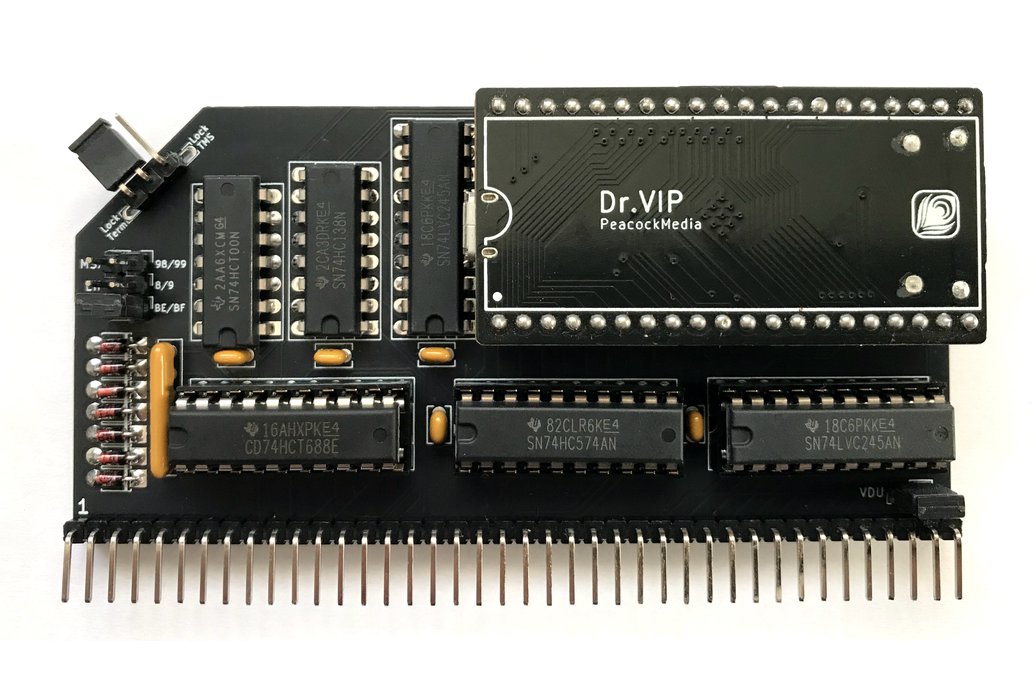

This is an alternative to the TMS9918A video module with a sharp and vibrant picture via HDMI-compatible picture (DVI), serial functionality and now USB keyboard input. There is a growing library of demos and games for the RC2014 + TMS (and sometimes + AY) combo. There is also MSX8 which allows loading of MSX roms. I've designed my own mcu board (dubbed Dr.VIP - an anagram of RP DVI) because I wanted something that resembled a DIP40 chip and I needed more GPIO exposed plus the HDMI socket on-board.
Fully assembled and tested. Plug and play.
For me, a video module is a game-changer for the RC2014 and compatible computers. I've done a lot of work with the TMS chip on RC2014 and my MSX2014 project. I love it, it's very powerful for its time, with 40-col text mode, tile mode, bitmap mode and full colour (lores) mode. However, the real TMS9918A chip as used in J B Langston's module has composite output which is, well, composite. I thought I could make an alternative with the same functionality plus convenient HDMI out and a nice sharp vibrant picture.
TMS emulation does provide:
It adds:
It doesn't provide:
Supported systems:
Unsupported systems:
