Sluisbrinkie Faraday

Name: Sluisbrinkie Faraday
SKU: 35524
Price: 55.00 USD
Availability: OutOfStock

Eurorack DIY Kit (PCB and Frontplate)

Designed by Sluisbrinkie in Netherlands

This seller is taking a break until Aug. 30, 2025. Sign up below to get an email when they're back!




$55.00

On A Break

Eurorack DIY Kit (PCB and Frontplate)

What is it? The Faraday (named after a certain Scientist) is an all-analog VCA/VCF combo using the SSI2164. The top section is a traditional VCA, the middle section is modeled after the revered SSM20…

What is it?

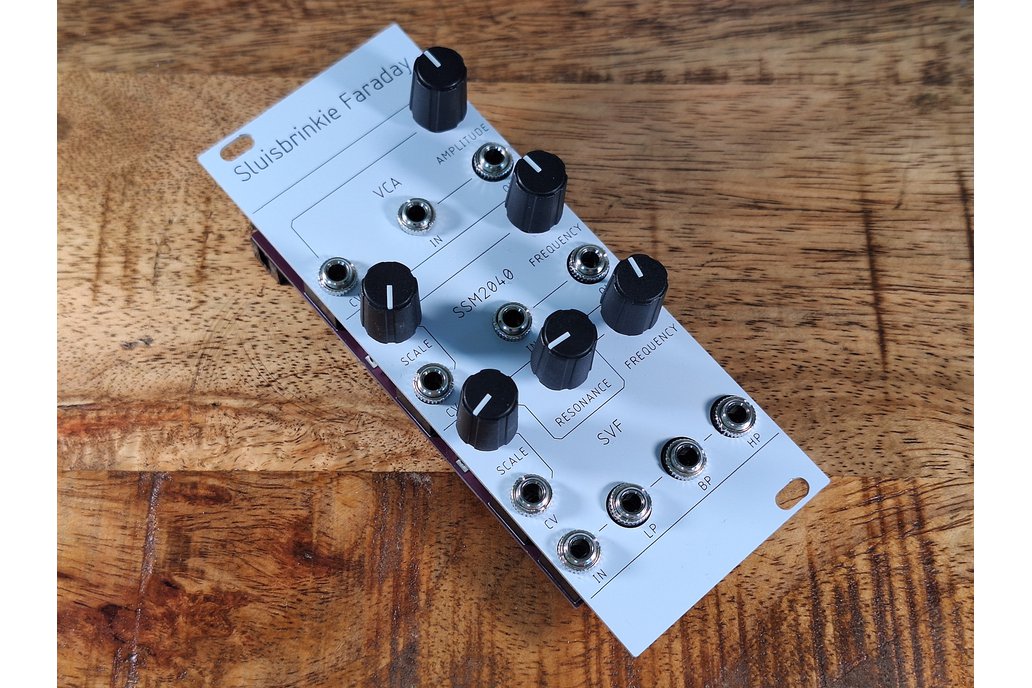

The Faraday (named after a certain Scientist) is an all-analog VCA/VCF combo using the SSI2164. The top section is a traditional VCA, the middle section is modeled after the revered SSM2040 VCF (which is very colorful and can double as an overdrive) and finally the bottom section is a 2-pole State Variable Filter with high-pass, band-pass and low-pass filter outputs (which can be mixed externally to obtain a notch filter).

In case you bought a PCB (with assembled SMD components) and panel from me, there are a number of things you need to finish the build:

1x SSI2614 (SMD, this needs to be soldered manually)
11x Thonkiconn mono jacks
1x 100kOhm Type A potentiometer (Bourns PVT09 series are used in my personal builds)
3x 10kOhm Type B potentiometer (Bourns PVT09 series are used in my personal builds)
2x 100kOhm Type B potentiometer (Bourns PVT09 series are used in my personal builds)
6x potentiometer knobs
1x 2x5 pinheader (for eurorack power supply)
1x 10-pins ribbon cable (for eurorack power supply)
