NES Power Supply Circuit Board

Name: NES Power Supply Circuit Board
SKU: 36865
Price: 17.99 USD
Availability: InStock

NES (Original) Power Rectification Circuit Replacement, Revive your NES

Sold By 4DayWeek




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Retro Fanatic, fan of CRTs and bringing back Retro Gaming. Will do Custom ModWork, things like DCHDMI, PicoBoot, Nintendo RGB Mods etc.

NES (Original) Power Rectification Circuit Replacement, Revive your NES

What is it? This PCB is a simple Circuit that can replace the original NES power rectification board, contained within the RF Box. It can be installed over the RF Box with out replacing it, if the o…

What is it?

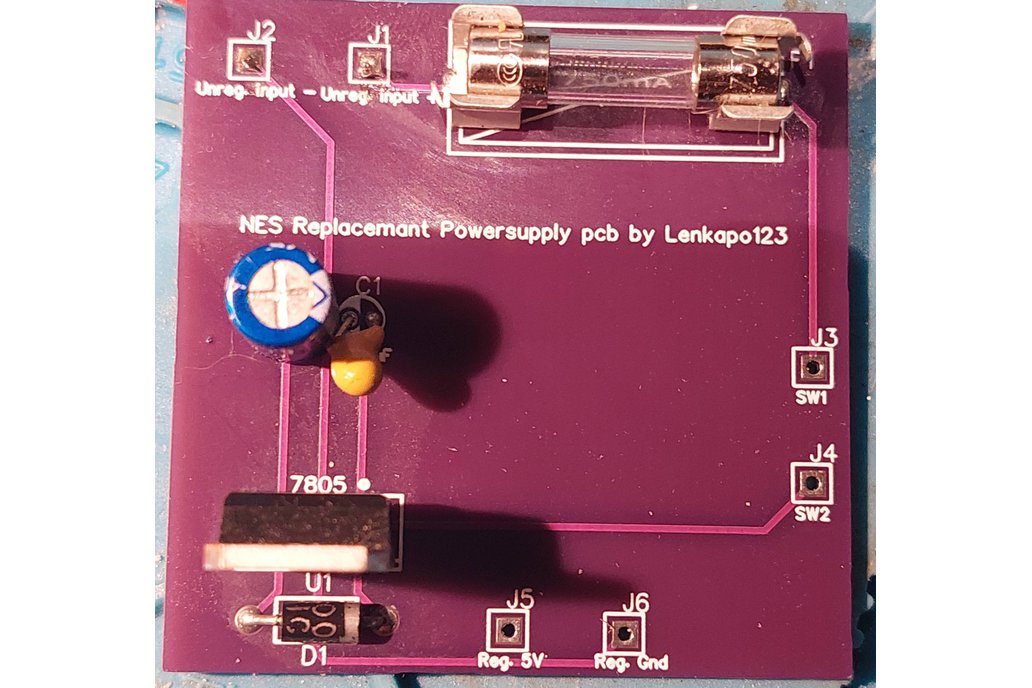

This PCB is a simple Circuit that can replace the original NES power rectification board, contained within the RF Box. It can be installed over the RF Box with out replacing it, if the original is no longer working.

Why did you make it?

My dead NES was revived by using this Board, maybe it can benefit someone else.

What makes it special?

The PCB will improve the overall Composite signal integrity, it's much cleaner than the Original. PCB fits upright against the top shield, with proper insulating tape to secure.
