WiFi thermal imaging camera

Name: WiFi thermal imaging camera
SKU: 39742
Price: 59.90 USD
Availability: InStock

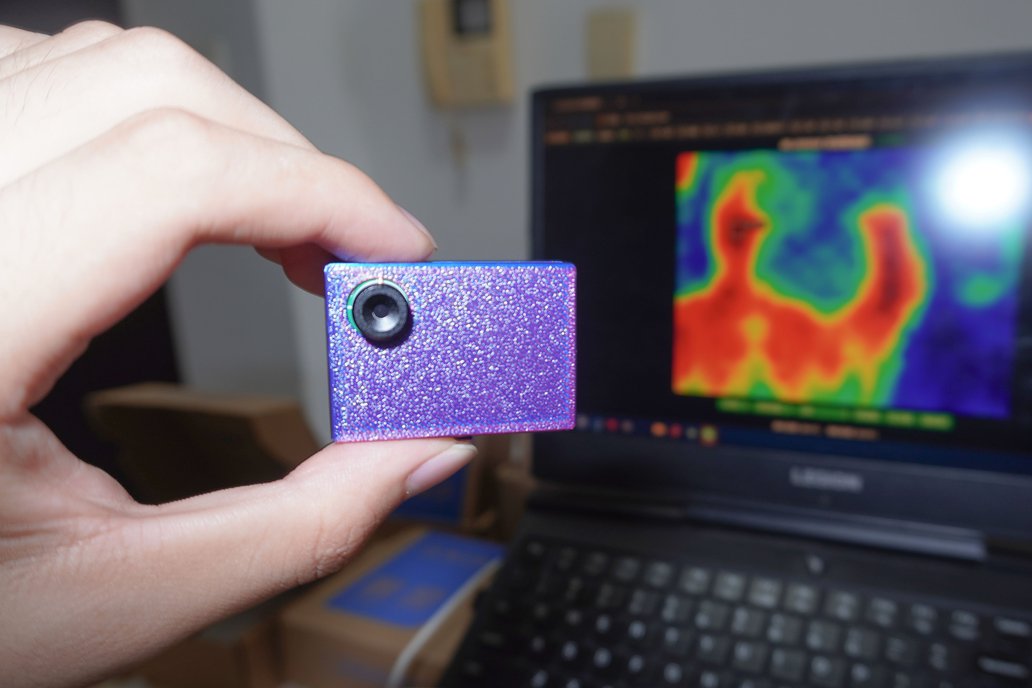

This is a DIY ultra-portable WiFi thermal imaging camera that enables real-time viewing via web browser

Designed by SsppaarrkkLlaabb in China

2025-08-17T03:54:45.129Z-DSC00675 拷贝.jpg






Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

This is a DIY ultra-portable WiFi thermal imaging camera that enables real-time viewing via web browser

DIY WiFi Thermal Imaging Camera Introduction This is a super-portable DIY thermal imaging camera I built. It connects via WiFi and allows real-time thermal image viewing directly in a web browser. Wh…

DIY WiFi Thermal Imaging Camera Introduction

This is a super-portable DIY thermal imaging camera I built. It connects via WiFi and allows real-time thermal image viewing directly in a web browser. Whether on a computer, smartphone, or any device with a browser, you can access it without the need for extra software.

📌 Design Purpose

The main purpose of this project is to quickly locate overheating or faulty components during PCB hardware debugging. Compared with expensive professional thermal imagers, this DIY solution is lightweight, low-cost, and easy to use anytime.

🔧 Features

Resolution: 32 × 24 (based on the thermal sensor’s native resolution)

Image Scaling Algorithms:

Bilinear interpolation

Nearest-neighbor interpolation

Multiple preset resolutions available

Image Post-processing:

Gaussian blur

Multiple color mapping effects: Rainbow, Thermal, Inferno, Turbo, etc.

Temperature Measurement:

Real-time measurement

Automatically highlights the hottest area in the frame

Hardware Design:

Enclosure size: 43 × 30 × 15.3 mm

Ultra-compact, can be used as a keychain

🌐 How to Use

Power on the device and connect to its WiFi hotspot

Open a browser and enter the device address

View the thermal image in real-time and choose different scaling or display modes

🛠 Open Source & License

All source code and enclosure design files are fully open-source

Free for commercial use, and you may modify or release your own versions

Disclaimer: Any negative consequences or illegal activities caused by the use or modification of this project are not my responsibility
