What is it?

The Raspberry Pi HiFi Hat is a cost-effective version of the Raspberry Pi Home Media Center. It combines the power of the Raspberry Pi SBC and the Hi-Fi audio capabilities of the TI’s PCM5100 32-bit DAC.

1X	2X

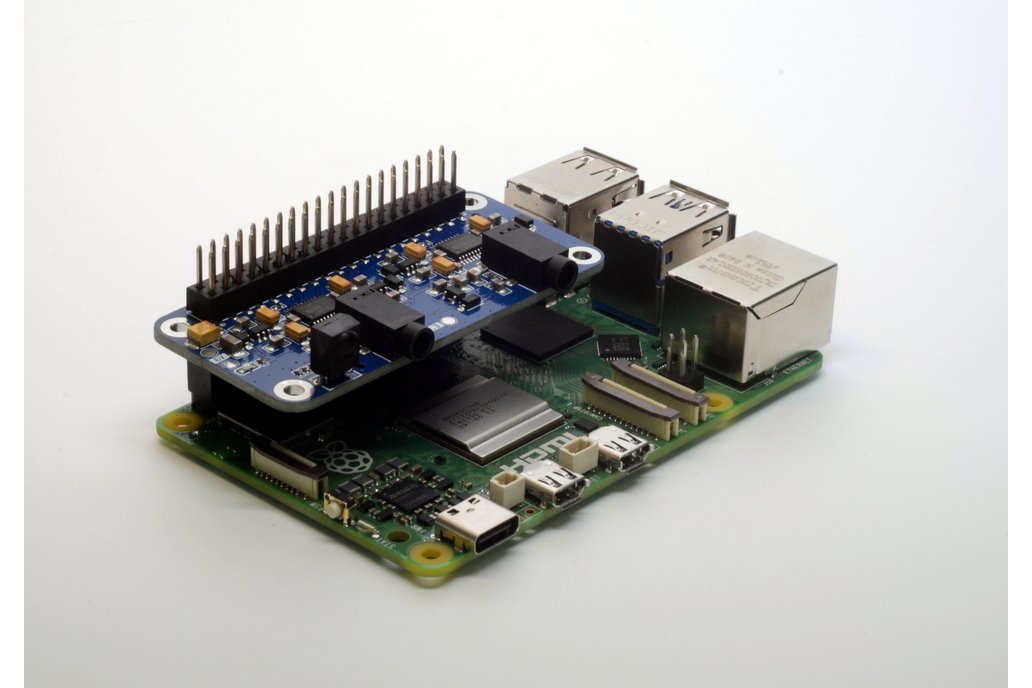

Raspberry Pi HiFi Hat is the lightweight implementation of the same PCM5100A DAC and power circuitry in a Hat shape. It has two flavors: 1X is a traditional DAC that works with any Raspberry Pi out there, while 2X is specifically designed for Raspberry Pi 5 and implements two stereo-DACs, which Raspberry Pi 5 users can use independently. Using two of them, you can have up to 4 stereo outputs, totaling 8 channels of audio.

Why did I build it

I did a few audio projects in the past, some using ESP32, some using larger Orange Pi and Raspberry Pi devices. Each has its pros and cons, and with each iteration, I'm trying to focus on the details that were working best for me while actually using them.

What is special about the Raspberry ecosystem is, of course, its community support. Being a not-so-strong software developer, I often have to rely on the work that other people did and baked into the base Raspbian image. Attaching a DAC, Ethernet, and IR reader is as simple as adding 3 lines into config.txt file. All the device tree definitions, kernel drivers, and dependency packages are already in place, believe it or not.

Sure, compared to the ESP32 platform, it is not as lightweight. It requires more power, it takes some time to boot. But when it comes to rapid development, there is nothing like the Raspberry Pi.

Raspberry Pi HiFi

Raspberry Pi HiFi is a first-in-line product that uses the legendary PCM5100 series DAC with supreme audio quality. It exposes a 2.1V RMS level output that you can plug into a stereo amplifier. Spend as much as you need on the external amp to deliver the sound you like (personally, I prefer late '80s audio gear).

Key features

	HiFi Raspberry Media Center and Hat	Amped Raspberry Media Center and Hat	Loud Raspberry Media Center and Hat	Louder Raspberry Media Center and Hat
Image (Media Center)
Compatible with (Media Center)	Raspberry Pi Zero (W), Raspberry Pi Zero2 W	Raspberry Pi Zero (W), Raspberry Pi Zero2 W	Raspberry Pi Zero (W), Raspberry Pi Zero2 W	Raspberry Pi Zero (W), Raspberry Pi Zero2 W
Image (Hat)
Compatible with (1X Hat)	Every Pi	Every Pi	Every Pi	Every Pi
Image (Hat, 2X)
Compatible with (2X Hat)	Raspberry Pi 5	Raspberry Pi 5	Raspberry Pi 5	Raspberry Pi 5
DAC	Single PCM5100A 32bit Stereo DAC	Single (1X) or Dual (2X) PCM5100A 32bit Stereo DAC working with TPA3110D2 D-Class amp	Dual (1X) or Quadruple (2X) I2S DAC MAX98357 with built in D-Class amp	(1X) Stereo I2S DAC TAS5805M with built in D-Class amp(2X) Dual (2.1) I2S DAC TAS5805M with built in D-Class amp
Output	2.1 VRMS Line level output -100 dB typical noise level	[1X]2x 25W (8Ω, 1% THD+N) at 22V; 2x 22W (4Ω, 1% THD+N) at 16V 1x 40W (4Ω, 1% THD+N) at 20V[2X]4x 25W (8Ω, 1% THD+N) at 22V; 4x 22W (4Ω, 1% THD+N) at 16V 2x 40W (4Ω, 1% THD+N) at 20V	[1X] 2x 3W (8Ω); 2x 5W (4Ω) [2X] 4x 3W (8Ω); 4x 5W (4Ω)	[1X] 2x 22W (8Ω, 1% THD+N); 2x 32W (4Ω, 1% THD+N) at 20V 1x 45W (4Ω, 1% THD+N) at 20V [2X]: 2x 22W (8Ω, 1% THD+N) + 1x 45W (4Ω, 1% THD+N)
RGB LED	Media Center only	Media Center only	Media Center only	Media Center only
IR input	yes	yes	yes	yes
Onboard Serial Bridge	Media Center only	Media Center only	Media Center only	Media Center only
Ethernet (Media Center)	Wiznet W5500 SPI Ethernet	Wiznet W5500 SPI Ethernet	Wiznet W5500 SPI Ethernet	Wiznet W5500 SPI Ethernet
Powers from	Media Center: 5V USB-C power adapter (up to 1 A)Hat: 5V from the host Internally: LP5907 3.3 V Ultra-Low-Noise LDO	8..26V from external sourcepowering host (up to 3A cont.)	Media Center: 5V USB-C power adapter (up to 3 A) Hat: 5V from the host (up to 4A) or 5V from screw connector (powering host)	65W USB-C PD power adapter [NOPD] Up to 26V from external PSU[Hat] 7..28V from external sourcepowering host (up to 3A cont.)
Mechanical dimensions (WxHxD), Media Center	88mm x 38mm x 100mm	88mm x 38mm x 100mm	88mm x 38mm x 100mm	88mm x 38mm x 100mm
Mechanical dimensions (WxHxD), Hat	65mm x 30mm x 15mm	70mm x 61mm x 20mm	65mm x 30mm x 20mm	65mm x 56mm x 20mm

Board Pinout

How to use

You need nothing more than an SD card with a Raspbian image and a USB-C power brick. You can use any distribution you like. The only change you need to make to enable hardware is to add 3 lines to the /boot/config.txt

dtoverlay=gpio-ir,gpio_pin=17 dtoverlay=hifiberry-dac

Other software options

The project repository provides a few examples with build instructions, including Volumio setup instructions, among others.

Hardware

Please visit the hardware section of the project repo for board schematics and PCB designs. Note that PCBs are shared as multi-layer PDFs as well as Gerber archives.

PCB diagram


IR reader

Please follow this guide to configure an IR reader

Raspberry Pi 5 note

Raspberry Pi 5 is the first one that allows the user to drive multiple I2S data lines using the same interface. What it means in practice is that while all older Pis have just 3 I2S lines (CLK, WS, DATA), Pi5 supports up to 4 Data lines (CLK, WS, D0, D1, D2, D3), capable of driving 4 independent audio interfaces.

2X Raspberry Pi hats support alternative data lines. You need to short some solder bridge to use it, though. It allows configuring Hats to use different pins and stack them together to create 4 individual stereo interfaces (8 channels in total) using the same device.

By default, the 2X hat uses pins 21,23 for data, with the possibility to switch to pins 25 and 27 with solder bridges and stack 2 boards together.

HiFi Hat (rev C)	HiFi Hat (rev D)

The configuration value that allows this is quite simply

dtoverlay=hifiberry-dac8x
