PCB Ruler

Name: PCB Ruler
SKU: 31614
Price: 10.00 USD
Availability: InStock

A PCB Ruler with common commonents and sizing for holes.

Designed by SP3LLLZ in United Kingdom

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A PCB Ruler with common commonents and sizing for holes.

What is it? A PCB Ruler with common commonents and sizing for holes to aid in your PCB design and give you a real world refreance to componant sizing. It includes Pads, Common Resistors, ZIF Connecto…

What is it?

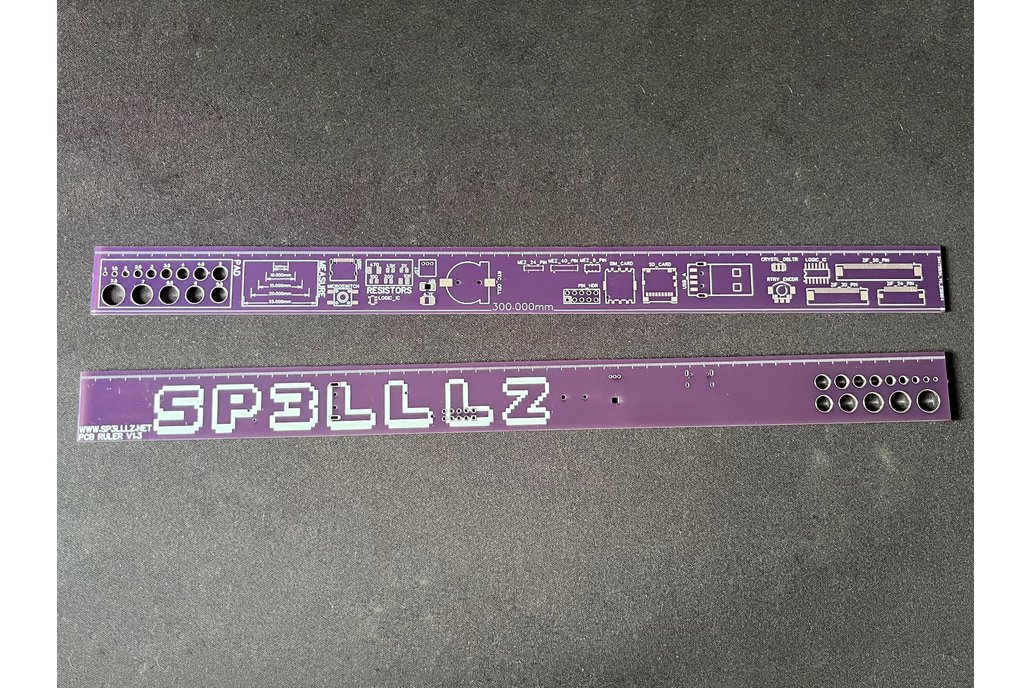

A PCB Ruler with common commonents and sizing for holes to aid in your PCB design and give you a real world refreance to componant sizing. It includes Pads, Common Resistors, ZIF Connectors, USB A and USB C among other things.

These also help fund my future projects.
