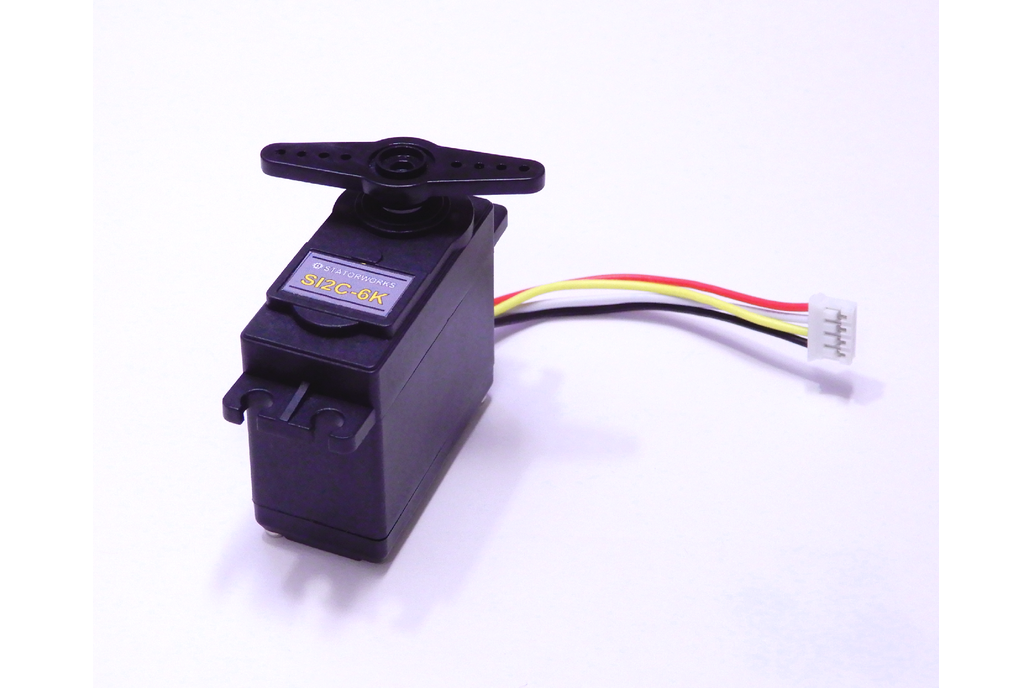

SI2C-6K I2C Servo. 180deg

Name: SI2C-6K I2C Servo. 180deg
SKU: 23830
Price: 12.95 USD
Availability: InStock

A servo with a smart yet simple I2C interface. For makers, robotics, animatronics.

Designed by Statorworks in Colombia




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A servo with a smart yet simple I2C interface. For makers, robotics, animatronics.

The SI2C-6K servo provides flexible control with a smart but simple I2C serial interface. This allows for less wiring, pin-count, and controller overhead on your maker or robotics project. Works with…

Specs and features:

Input voltage: 4.5 – 9v*
Stall torque: 6Kg @6.5v
Stall current: 1.8Amps.
Travel angle: 180deg
Dimensions: 40x45x20mm
Accessories: Arms, PH 4-pin connectors (24Ga), tap board.
I2C interface (3.3v). Fast, smart yet simple and practical.
Programmable I2C address. Have multiple servos on bus.
Control power, speed, ramp-time and ramp-profile.
Read current position, velocity, power.
Programmable position sequence. Runs without controller.
Optional CRC8 checksum on I2C read and write.

Full manual, example source and projects provided: https://github.com/statorworks/I2CServo

Don't forget to check out the open source tester module, available separately. It lets you test motion and assign the I2C address very easily.

No country selected, please select your country to see shipping options.

Change Destination Country:

Quantity	Price
1	$12.95
2-4	$12.45
5+	$11.95
