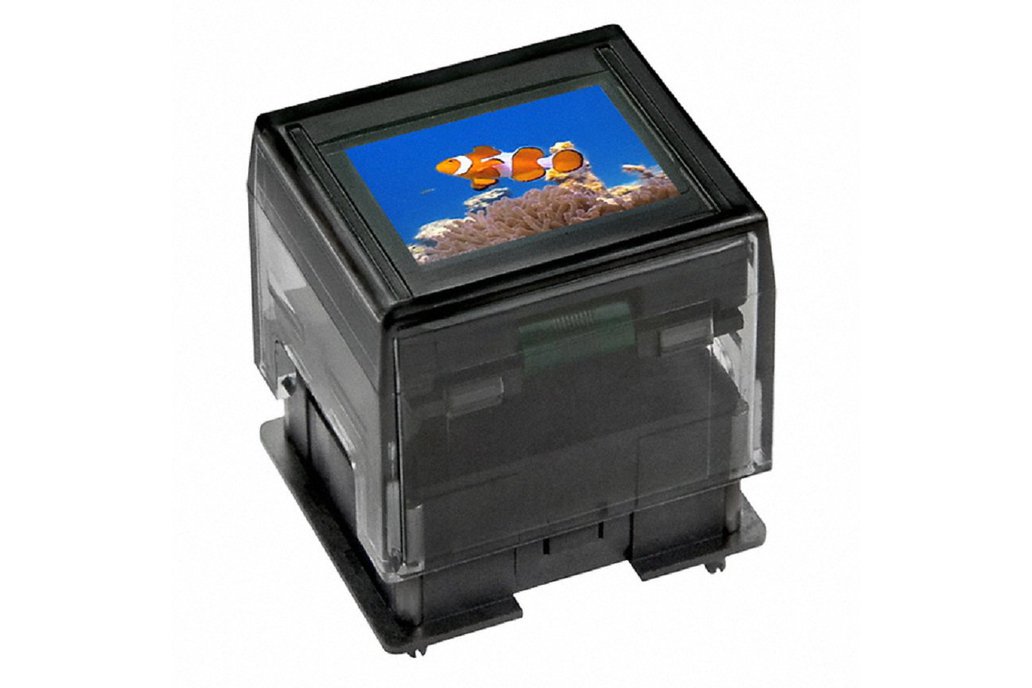

These dust proof pushbutton switches have a built-in OLED display with SPI communication. They have a high reliability and long life for industrial applications.
These components were soldered to PCB…
These dust proof pushbutton switches have a built-in OLED display with SPI communication. They have a high reliability and long life for industrial applications.
These components were soldered to PCBs but never turned on as they were part of an over run. They will be carefully desoldered prior to shipping.
Breadboard-friendly breakout PCB and pin headers are available.
Overall Specs:
Outer Dimensions: 23.13mm x 20.59mm x 23.0mm
Mounting Type: Through Hole
Supply Voltage: 2.4 ~ 3.5VDC
Screen Specs:
Viewing Area (H x V): 15.5mm x 11.6mm
Viewing Angle: 180°
Display Mode: 65,536 Colors, Passive Matrix
Pixel Format: 64RGB x 48 Pixels
Operating Life: 30,000 hours @ 100cd/m² OR 60,000 @ 50cd/m²
