SR_DEMO_B

Walkie Talkie Transceiver /Data transfer Module

 Demo Board specification

  ( for  1WU module)

Please note: When you place an order, please do tell us which module type do you want for the DEMO_B, 1W UHF, 1W VHF, 1W(350M-390M), 0.5W UHF 2)The cost is just for one pcs. The DEMO_B with antenna, but without speaker and battery.

Outline:

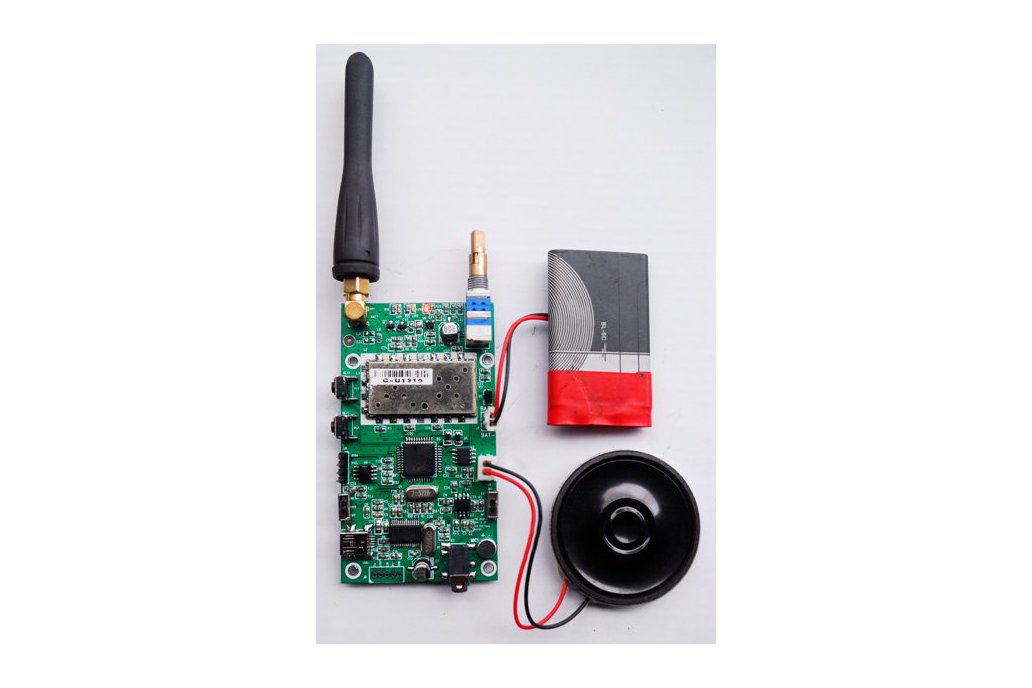

FRS-DEMO-B is designed for walkie talkie transceiver module SR-FRS-1W and SR_FRS_0W5 demonstration, it can be used for both UHF（400M-480M）and VHF (136M-174M). It also can be used for voice intercom and data transfer demonstration. It is easy to set all the module parameter via the USB interface. When select the channel, it would voice broadcast the current channel number. You may quickly evaluate our module performance by the demo board, just make a little modify, it can be directly applied into your real production.

The demo board performance：

• The power switch, volume adjust, channel selection switch 3 in 1
• 16 channels can be selected by the encoder switch
• It is easy to switch the VOX (sound control transmit) by a VOX switch, the VOX level can be set via the PC
• Voice broadcast for the channel number, Chinese/English could be selected
• Monitor function by press [MON]key
• Voice intercom demo
• Data transfer demo
• One group user interface: SQ, LINE_IN, LINE_OUT, PTT, GND
• Could restore to the factory parameter setting
• The demo board parameter can be set via the USB interface, for the setting instruction please contact us to get the 《SR_FRS_1W UART communication protocol》和《SR_FRS_0W5 UART communication protocol》
• Tx frequency, Rx frequency can be set alone
• Tx CTCSS, Rx CTCSS can be set alone
• Rf output power can be set by software
• Companding setting
• Transmit Busy lock setting
• Squelch level setting
• GBW bandwidth setting
• MIC sensitivity setting
• Scramble setting
• Volume setting
• VOX level setting
• TOT setting (timer of transmit)
• Auto power save setting
• Data transfer

• All setting can be kept when power off

  1) for detail spec. please contact us. 2) the demo board is subject to be upgraded without notice;
