Solar Power Manager for LiPo, 9V-30V Solar Panels

Name: Solar Power Manager for LiPo, 9V-30V Solar Panels
SKU: 33448
Price: 25.00 USD
Availability: InStock

Highly Flexible Solar Power Controller and Charger - Used in SwitchDoc Labs SolarMAX controllers

Sold By SwitchDoc Labs

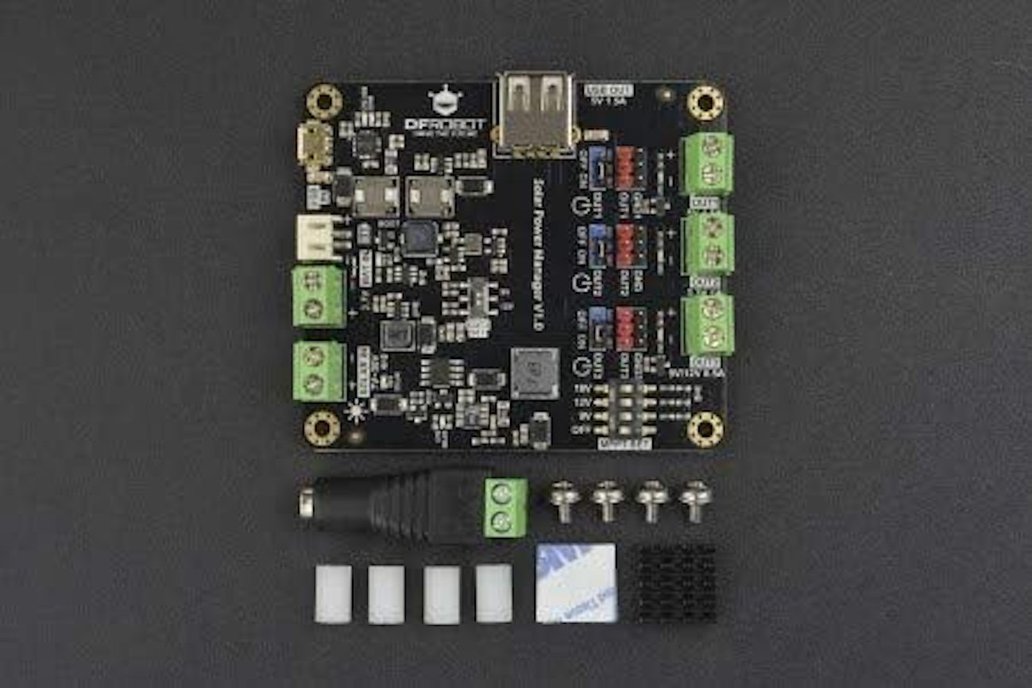

Solar Power Manager for LiPo, 9V-30V Solar Panels 1

Solar Power Manager for LiPo, 9V-30V Solar Panels 2

Solar Power Manager for LiPo, 9V-30V Solar Panels 3

Solar Power Manager for LiPo, 9V-30V Solar Panels 4

Solar Power Manager for LiPo, 9V-30V Solar Panels 5


2024-01-17T20:55:34.633Z-DFR0535-Build a solar powered system.jpg



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Highly Flexible Solar Power Controller and Charger - Used in SwitchDoc Labs SolarMAX controllers

This product was used with the SwitchDoc Labs SolarMAXLiPo projects. We now have the base boards for sale. https://www.switchdoc.com/2019/08/solarmax-solar-power-raspberrypi-arduino-skyweather/ 7V~…

Specifications

Solar power management IC: LTC3652

Solar input voltage (SOLAR IN): 7V~30V

Battery input (BAT IN): 3.7V single cell Li-polymer/Li-ion battery

Charge current(USB/SOLAR IN): 2A Max

Charging cutoff voltage(USB/SOLAR IN): 4.2V±1%

MPPT setting voltages：OFF/9V/12V/18V

USB IN voltage: 5V

Regulated power supply: OUT1=5V 1.5A; OUT2=3.3V 1A; OUT3=9V/12V 0.5A

Regulated power supply efficiency (3.7V battery IN)

 OUT1: 86%@50%Load

 OUT2: 92%@50%Load

 OUT3 (9V OUT): 89%@50%Load

USB charge efficiency: 84%@1A

Solar charge efficiency (18V SOLAR IN)：78%@1A

Maximum quiescent current: <3 mA

Protections

 BAT IN: over charge /over discharge /over current /reverse connection protection

 OUT1-OUT3/USB OUT: short circuit/over current/over heat protection

 SOLAR IN: reverse connection protection

Operation temperature：-40℃～85℃)
