Available in 1U PulpLogic and 1U Intellijel formats. If you aren't sure what size you need, measure the height of one of your 1U modules. If it is ~39.5mm tall, choose 1U Intellijel. If it is ~43mm tall, choose 1U PulpLogic.

Multiformat panels fit in both Intellijel AND PulpLogic formats!

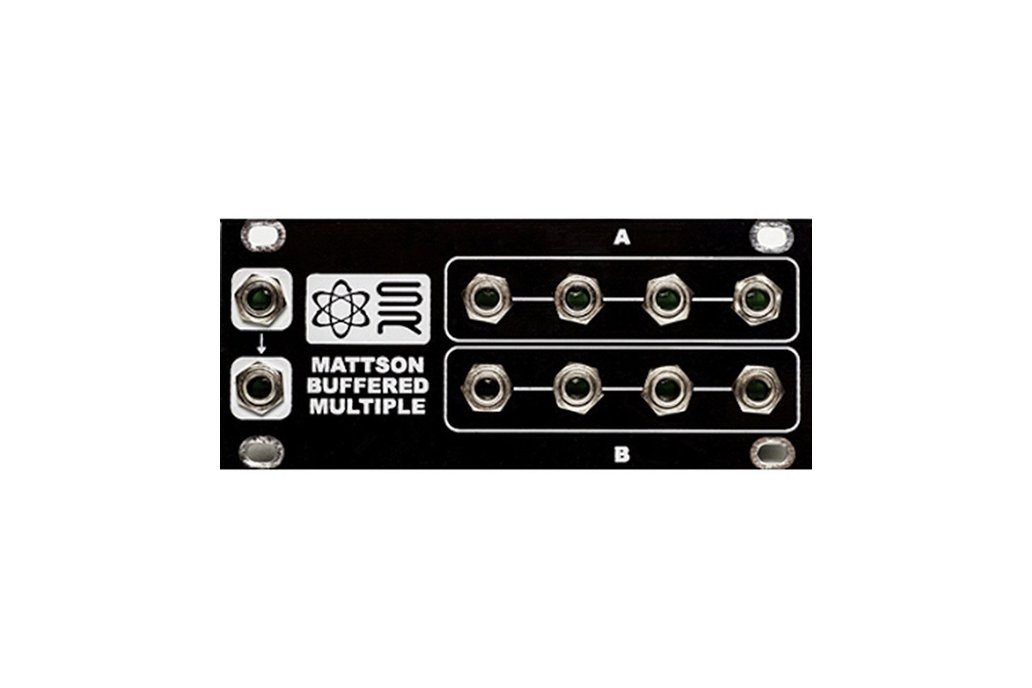

The 1U Mattson Buffered Multiple is a PRECISION buffered mult that is perfect for 1V/O CV sources. A signal plugged into INPUT A will be available from all 8 OUTPUTS. Break the chain by adding a second signal into INPUT B; signal A comes out the 4 "A" outputs and signal B is available at the 4 "B" outputs.

Features:

• 2 Channels

• Channels 1 and 2 are 1 to 4

• Cascaded inputs: CH 1>CH 2

Specifications:

• Current draw: +12 18mA, -12 18mA

• Width: 20HP

• Depth: 32mm
