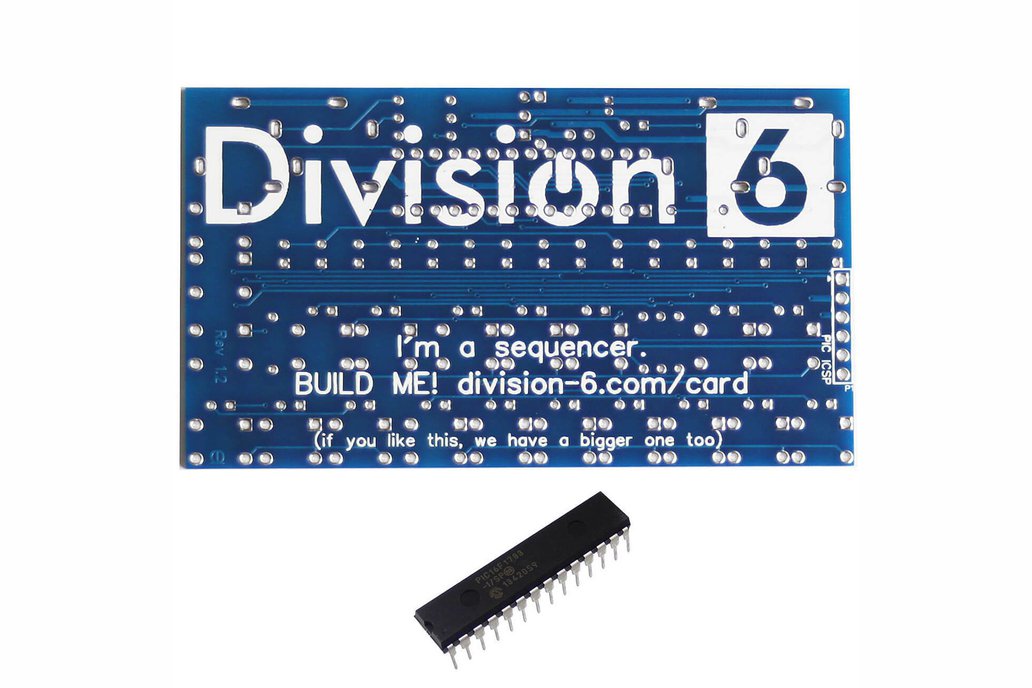

Please note: The PCB combo includes the PCB and a programmed IC; no other parts will be included. Please see the link to the BOM below to find out what parts you will need to build this up!

The Division 6 packs a lot of sequencer into a tiny package! This 16-step circuit can work as a sequencer or as a handheld keyboard.

Features:

• 16 steps
• Clock in and clock out (1 V/O)
• Gate out
• Run button: start or stop the sequence
• Reset button
• 3 octave range (C=1V/2V/3V)
• Rest step: holds the previous note and does not fire the gate
• Loop step: change the number of steps in the sequence
• Optional case

Now shipping version 2! Here are some of the new features you have to look forward to:

• Multiple sequence memories
• Songs – String sequences together
• Live transpose
• More! (see the user manual for full details)

Specifications:

• Power In: 7-15VDC, tip positive through a 3.5mm jack. Find a voltage source on your synth to power it if you can! A 9V battery or AC adapter will work too.
