Erica Synths DIY BBD Delay/ Flanger is one of the few BBD chip based DIY moduels.
Designed by Synthrotek in United States of America
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More

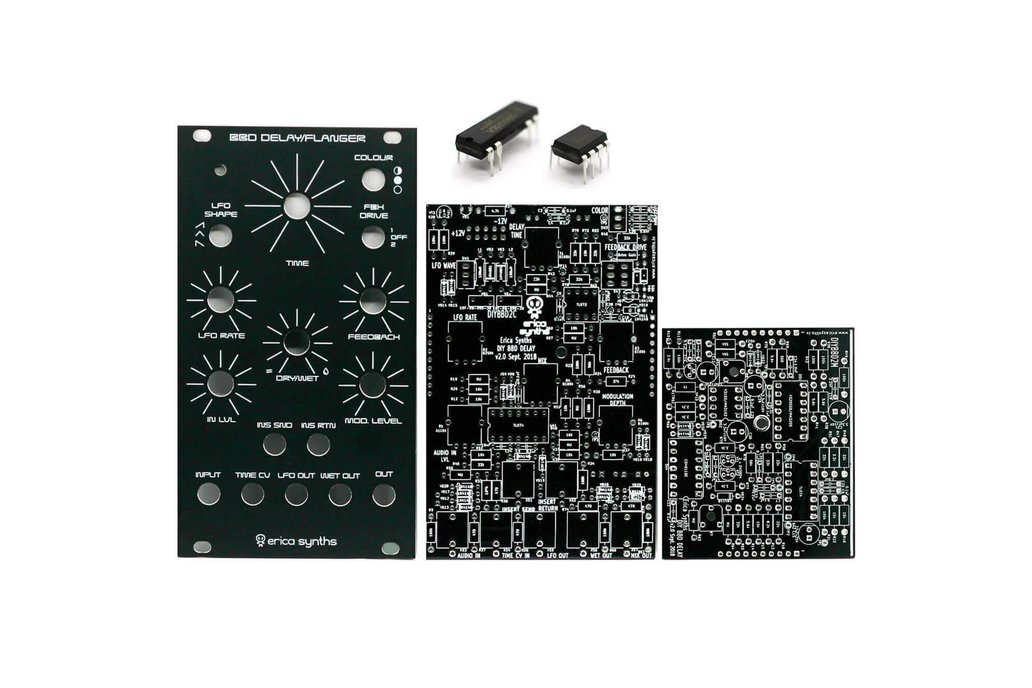

Please note: this includes the PCBs, panel, V3102 IC and V3205SD IC only. No other parts are included. Please see the bill of materials to source the rest of the parts needed. Erica Synths DIY BBD De…
Read More…Please note: this includes the PCBs, panel, V3102 IC and V3205SD IC only. No other parts are included. Please see the bill of materials to source the rest of the parts needed.
Erica Synths DIY BBD Delay/Flanger is one of the few BBD (bucket brigade delay) chip based DIY modules. The module is designed to provide variety of effects from flanger to delays with adjustable flavours and plenty of modulation possibilities.
Features:
The module has built in LFO with selectable shape and dedicated LFO output, delay time CV input with an attenuator, selectable feedback overdrive and feedback Send-Return connectors, so you can apply external effects on feedback signal. Maximums feedback settings put the module in self oscillation, so it can be used as an experimental sound source, as well.
Max delay time | Audio output amplitude | CV amplitude (full span) | Panel width | Module depth | Power consumption |
---|---|---|---|---|---|
300ms | 10V ptp | -5 - +5V | 14HP | 45mm | 30mA @+12V 20mA @-12V |
