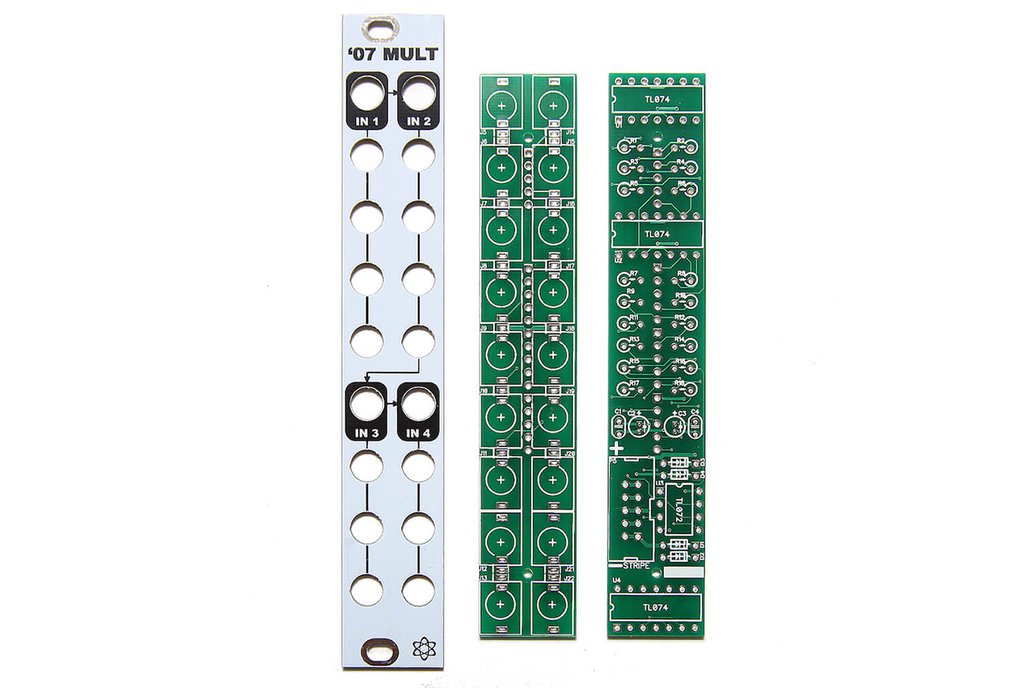

Please note: this product only includes the PCB and Panel. You will need to source your own parts. Please see the Bill of Materials to find out which parts you will need.

The MST ’07 Buffered Multiple is the original buffered mult design invented by George Mattson in 2007. It’s a precision mult that is perfect for 1V/O CV sources. A signal plugged into Input 1 will be available from all 14 outputs. Break the chain by adding a second signal into input 2; signal 1 comes out 4 outputs and signal 2 is available at the remaining 10. Plug in as many as 4 inputs, each split 3 or 4 times. What you put in you GET OUT!

Features:

• 4 Channels
• Channels 1 and 2 are 1 to 4
• Channels 3 and 4 are 1 to 3
• Cascaded inputs: CH 1 > CH 2 > CH 3 > CH 4

Specifications:

• Current draw: V+ max 42mA, V- max 42mA
• Depth: 33mm
• Width: 4HP
