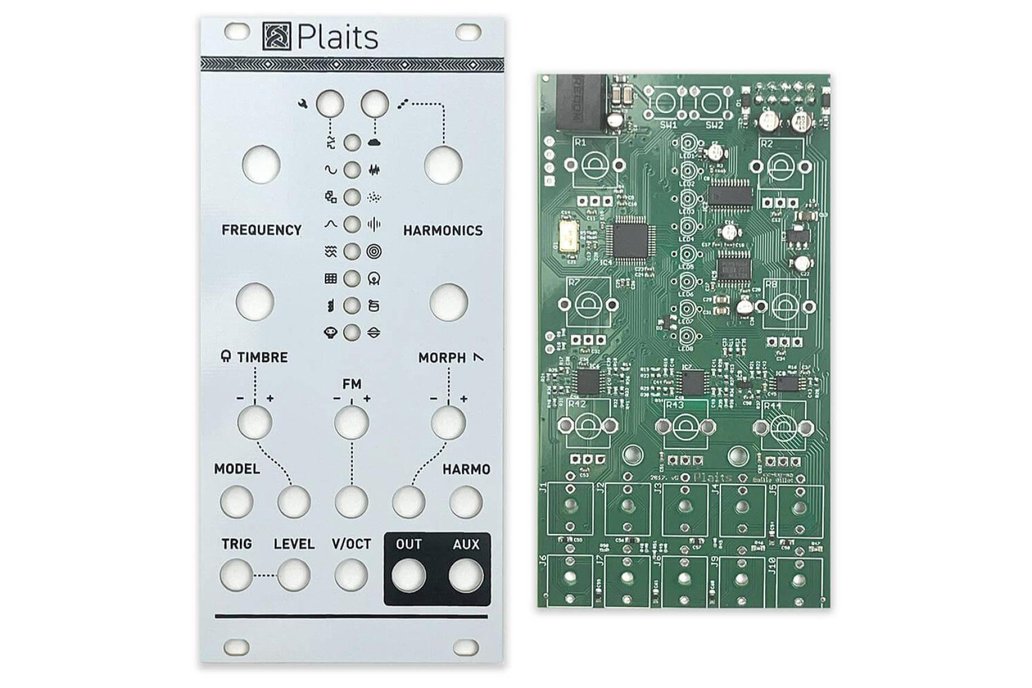

Please note: We offer several options for this circuit. If you choose an SMD populated PCB, we also populate the 10-pin power header and the voltage regulator before shipping, and we pre-install the firmware so that you don't need to program anything. If you choose the bare PCB, no parts are populated or provided. You can use our PCB with another manufacturer's panel!

Assembly required. You can find assembly instructions and a bill of materials for the SMD version here: https://www.soundstudymodular.com/assembly-instructions/mutable-instruments-plaits-assembly/

For the bare PCB, view the bill of materials at the Mutable Instruments Github. We do not provide assembly instructions for this version, and the technical support for it will be limited.

Mutable Instruments Plaits is a multi-algorithm macro oscillator that provides everything from FM to speech synthesis, analog percussion emulation, wavetables, modal synthesis, granular synthesis...whoa, this module does basically everything. Expanding on Braids's strong points and eliminating its pitfalls, Émilie Gillet's Plaits is a perfect bonding of tremendous flexibility and an intuitive user interface.

Built from the ground up and sharing no code or hardware with Braids, Plaits borrows concepts from its predecessor while operating at considerably higher audio resolution and with a refined means of user interaction. For one, it dispenses with that pesky screen to offer even more tactility and immediacy. Additionally, Plaits features a dedicated CV input for the model parameter, easy access to the module’s internal envelopes for modulation of vital parameters, and an integrated lowpass gate with definable filtering intensity and virtual vactrol response time.

Offering a broad survey of synthesis techniques, Plaits promises a vast sonic palette that could find a home in any modular synthesizer setup. Ideal for beginners and modular synth gurus alike, Plaits is an obvious choice for anyone who wants a lot of functionality in a small space and with a modest price tag.

PLAITS FEATURES

8 Pitched Synthesis Models:

• Two virtual analog models for continuously-variable waveforms
• Triangle-core oscillator with variable slope routed through a waveshaper and wavefolder
• FM with variable feedback path
• 2 separate formants and a variable shape window modulator for VOSIM style filter sweeps
• Additive oscillator (24-harmonic)
• Wavetable oscillator (8x8 waves arranged across 4 banks)
• Chord generator (wavetables or string/organ emulation)
• Speech algorithms (formant, SAM, LPC), with banks of phonemes

8 Noise and Percussion Synthesis Models:

• Granular sawtooth or sine oscillator (each with variable gain density and frequency randomization)
• Clocked noise routed through a resonant filter
• 8 layer dust/particle noise routed through either resonant or all-pass filters
• Karplus-Strong ("Red Mode" in Rings) with either white noise or dust excitation
• Modal resonator ("Green Mode" in Rings) with mallet or dust excitation
• Analog kick emulator
• Analog snare emulator
• Analog hi-hat emulator

I/O and Control:

• 2 selection buttons with tactile LED visual display
• Primary frequency controls (8 octave range)
• Harmonics timbre and morph timbre dimensions
• Attenuverters for frequency, morph, amd timbre CV inputs
• Primary 1V/Oct input with -3V to +7V input range
• Trigger input for internal decay envelope or drum exciter
• Level CV input for internal LPG or accent control for drum models

Specifications:

• Width: 12HP
• Depth: 25mm -Current draw: +12V: 50mA, -12V: 5mA
