ESP32-C3 TFT Touch equips with ESP32-C3, which is a single-core Wi-Fi and Bluetooth 5 (LE) microcontroller SoC, built around a 32-bit RISC-V chip processor with a four-stage pipeline that operates at up to 160 MHz, with 4MB Flash, 400KB SRAM. There is the comparison of ESP chip families: https://gist.github.com/sekcompsci/2bf39e715d5fe47579fa184fa819f421

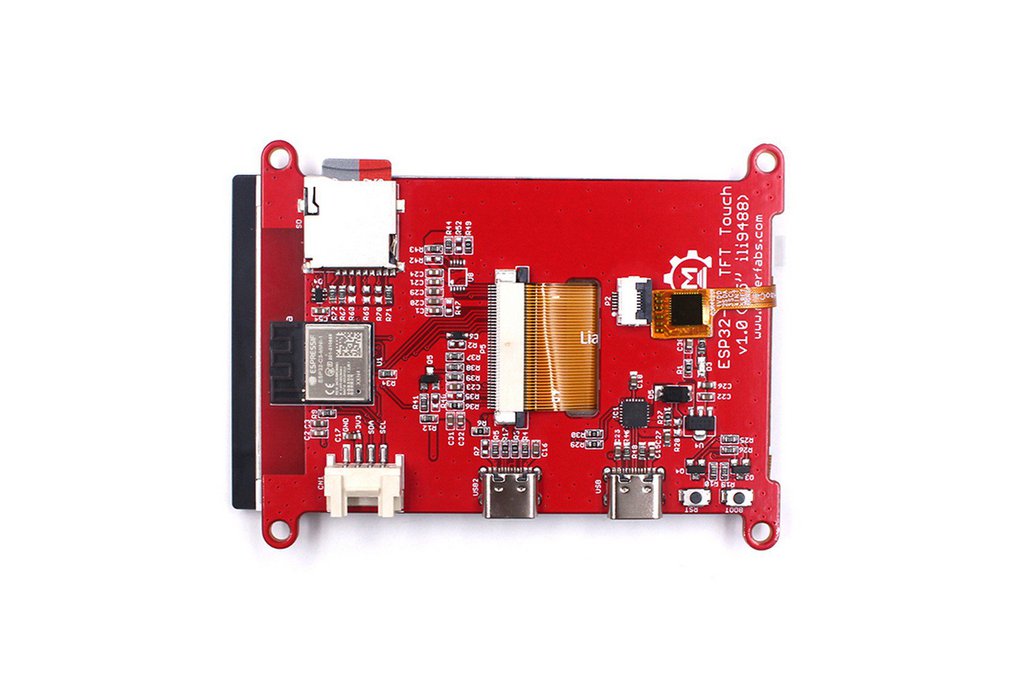

this ESP32 C3 SPI 3.5 inch Touch is 320*480, with ILI9488 driver. Same as the other Makerfab's ESP32 displays, there 2 USB connectors, one for USB2UART convertor, and 1 USB native; on-board SD card, and Mabee connector(I2C) which is Seeedstudio Grove compatible, so it fits for applications that need sensor connected.

Compares to Other Makerfabs ESP32 displays, this TFT Touch suits for Makers that are interested in ESP32-C3 RISC V architecture, not Tensilica, and has Bluetooth LE (not classic!). Note that we Makerfabs open all its hardware design files to users' remix, and the most basic demo usage.

Features:

• Controller: ESP32-C3-MINI-1-N4, 4MB Flash, RISCV-32bit, 160MHz, 400KB SRAM, Bluetooth 5
• Wireless: WiFi& Bluetooth 5.0
• LCD: 3.5inch TFT LCD
• Resolution: 480*320
• Color: RGB
• LCD interface: SPI
• LCD Driver: ili9488
• Touch Panel: Capacitive
• Touch Panel Driver: FT6236
• USB: Dual USB Type-C(one for USB-to-UART and one for native USB)
• USB2UART Chip: CP2104
• Power Supply: USB Type-C 5.0V(4.0V~5.25V)
• Button: Flash button and reset button
• Mabee interface: 1*I2C
• Backlight Controller: Yes
• MicroSD: Yes
• Arduino support: Yes
• Type-C Power Delivery: Not Supported
• Operation temperature: -40℃ to +85℃
• Dimension: 66mm84.3mm12mm
• Weight: 52g
