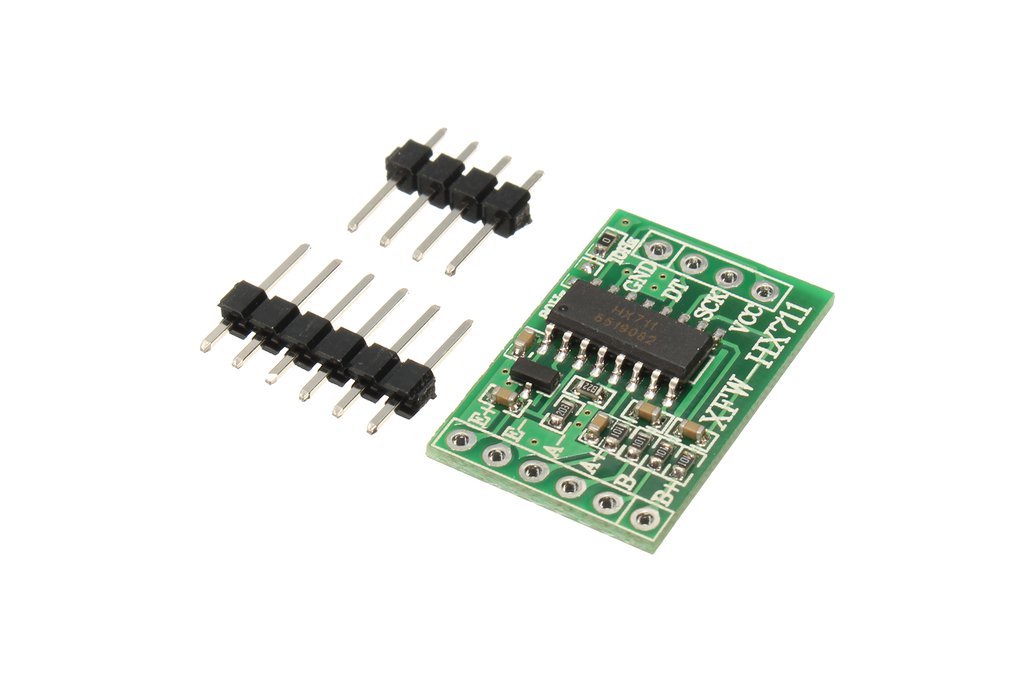

Weighing Sensor Module Dual-channel 24-bit A/D

Name: Weighing Sensor Module Dual-channel 24-bit A/D
SKU: 15049
Price: 14.00 USD
Availability: InStock

3pcs AD Weighing Sensor Module Dual-channel 24-bit A/D Conversion HX711 Shieding

Sold By takeit

Weighing Sensor Module Dual-channel 24-bit A/D 1

Weighing Sensor Module Dual-channel 24-bit A/D 2

Weighing Sensor Module Dual-channel 24-bit A/D 3

Weighing Sensor Module Dual-channel 24-bit A/D 4

Weighing Sensor Module Dual-channel 24-bit A/D 5

Weighing Sensor Module Dual-channel 24-bit A/D 6

Weighing Sensor Module Dual-channel 24-bit A/D 7

Weighing Sensor Module Dual-channel 24-bit A/D 8









Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Welcome to my Store. where you can find what you need to make your DIY products

3pcs AD Weighing Sensor Module Dual-channel 24-bit A/D Conversion HX711 Shieding

Features: This module uses 24 high-precision A / D converter chip hx711, is designed for high-precision electronic scale and design, with two analog channel input, the internal integration of a gain …

Features:

This module uses 24 high-precision A / D converter chip hx711, is designed for high-precision electronic scale and design, with two analog channel input, the internal integration of a gain programmable amplifier 128. Input circuit can be configured to provide an electrical bridge bridge voltage (such as pressure, weight) sensor model is an ideal high-precision, low-cost sampling front-end module.

Description:

Two selectable differential input channels
On-chip active low noise PGA with selectable gain of 32, 64 and 128
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset
Simple digital control and serial interface: pin-driven controls, no programming needed
Selectable 10SPS or 80SPS output data rate
Simultaneous 50 and 60Hz supply rejection
Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA
Operation supply voltage range: 2.6 ~ 5.5V
Operation temperature range: -40 ~ +85℃
