12V Temperature controller | LCD screen

Name: 12V Temperature controller | LCD screen
SKU: 37475
Price: 29.50 USD
Availability: InStock

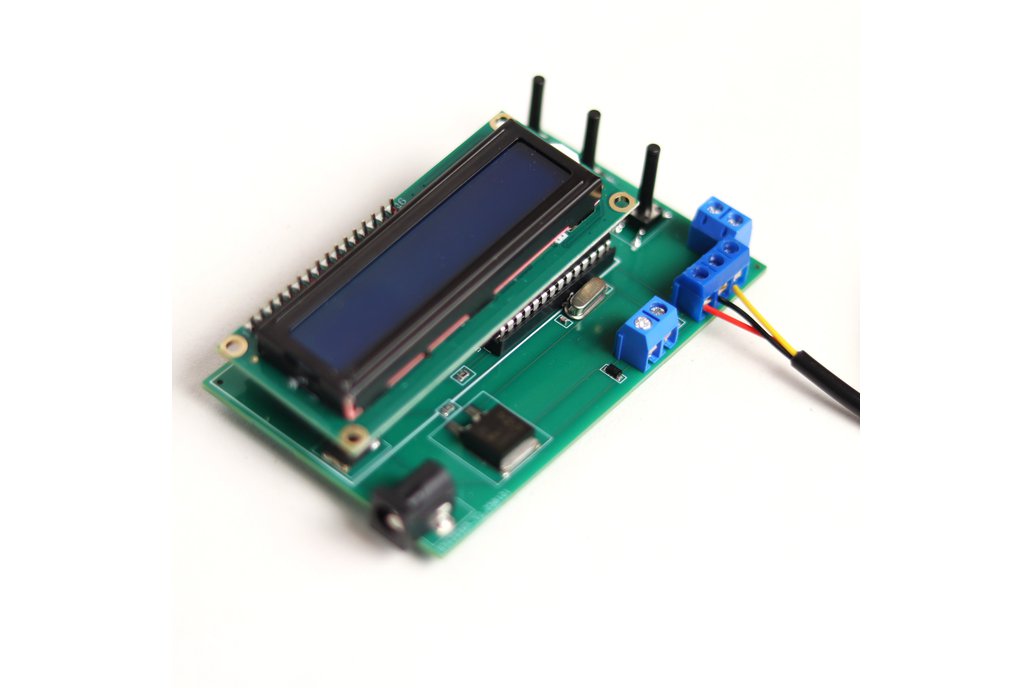

High efficient 12V temperature controller with LCD screen.

Designed by GrapeByte in Hungary

12V Temperature controller | LCD screen 1

12V Temperature controller | LCD screen 2

12V Temperature controller | LCD screen 3

12V Temperature controller | LCD screen 4

12V Temperature controller | LCD screen 5

12V Temperature controller | LCD screen 6

12V Temperature controller | LCD screen 7

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

High efficient 12V temperature controller with LCD screen.

What you need to know: Dimensions: 101mm x 60mm Input: 12V DC, max 1A Output: 12V DC, max 1A Temperature control modes: cooling and heating Measurement accuracy from -10°C to +85°C: ± 0.5°C Waterproo…

What you need to know:

Dimensions: 101mm x 60mm Input: 12V DC, max 1A Output: 12V DC, max 1A Temperature control modes: cooling and heating Measurement accuracy from -10°C to +85°C: ± 0.5°C Waterproof temperature sensor

How to use: You can see the buttons on the photos, it's easy to remember once you saw it.

The menu:

+: Temp settings: You have to push the + button to go inside this setting. Here if you push the + button, you can set the max temperature and if you push the - button you can set the min temperature. After you set the min and max values, you have to push the menu button always, to save the settings. The difference between the min and max value will be the hysteresis. For example: if the controller is in cooling mode, and the temperature is above the maximum value, then the connected 12v "valve" will be opened until the temperature reaches the min value. After the temperature reached the min value, the valve will not open until the temperature hits the max value again.

-: Mode settings: You have to push the - button to go inside this setting. Here you can choose between heating and cooling. Press the + button if you want the Heating mode, and press - if you want the Cooling mode, then press the menu button to save the settings.
