PurpleHat axle rotation sensor for N scale (vertical mount) with 2 x 1mm magnets
Designed by IoTT - Internet of Toy Trains in United States of America
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
What is it? The PurpleHat track measuring sensor can measure the rotation of an axles equipped with magnets and calculate scale speed, travel distance and more. The rotation is measured by a 3D hall …
Read More…The PurpleHat track measuring sensor can measure the rotation of an axles equipped with magnets and calculate scale speed, travel distance and more. The rotation is measured by a 3D hall sensor.

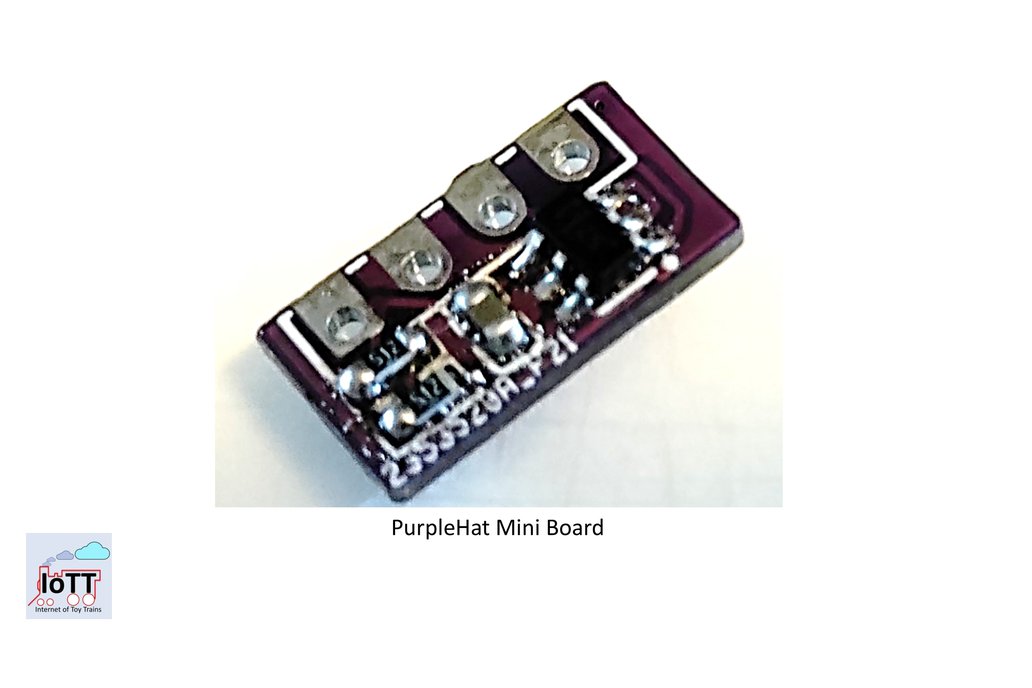

The PurpleHat Mini kit consists of following items: - Sensor PCB 10x6mm with hall sensor for horizontal or vertical installation - 2 neodymium magnets (2mm for N, 3mm for HO, or 12mm (with mounting bracket) for G Scale) - wiring kit (pin header, 4 wires 100mm for connection to IoTT Stick)
NOTE: The kit does not include the IoTT Stick.
The calculation is provided by an IoTT Stick (sold separately), and the results are shown on the stick display. In addition, the stick can send the results to a web browser to be displayed as speed graph. In Speed Matching mode, the PurpleHat sensor can autonomously analyze the speed characteristics of a locomotive and then calculate the speed table settings so that the locomotive has a defined scale speed for every speed setting on the throttle. This allows for setting speed tables in about 2 minutes per locomotive.
The PurpleHat sensor is the result of an ongoing development which finally will result in a Layout Positioning System, allowing for position feedback of the trains without installation of a large number of block occupancy sensors.
This is a fully functional track measuring device for N scale. It comes with a set of mounting brackets to support several installation options.
