PurpleHat Track Measuring Kit Vertical (N, HO, G)

Name: PurpleHat Track Measuring Kit Vertical (N, HO, G)
SKU: 26511
Price: 14.50 USD
Availability: InStock

PurpleHat axle rotation sensor for vertical mount, N, HO, G scale

Designed by IoTT - Internet of Toy Trains in United States of America

PurpleHat Track Measuring Kit Vertical (N, HO, G) 1

PurpleHat Track Measuring Kit Vertical (N, HO, G) 2

PurpleHat Track Measuring Kit Vertical (N, HO, G) 3

PurpleHat Track Measuring Kit Vertical (N, HO, G) 4

PurpleHat Track Measuring Kit Vertical (N, HO, G) 5

PurpleHat Track Measuring Kit Vertical (N, HO, G) 6

PurpleHat Track Measuring Kit Vertical (N, HO, G) 7

PurpleHat Track Measuring Kit Vertical (N, HO, G) 8

PurpleHat Track Measuring Kit Vertical (N, HO, G) 9

PurpleHat Track Measuring Kit Vertical (N, HO, G) 10

PurpleHat Track Measuring Kit Vertical (N, HO, G) 11

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

PurpleHat axle rotation sensor for vertical mount, N, HO, G scale

What is it? The PurpleHat track measuring sensor can measure the rotation of an axles equipped with magnets and calculate scale speed, travel distance and more. The rotation is measured by a 3D hall …

What is it?

The PurpleHat track measuring sensor can measure the rotation of an axles equipped with magnets and calculate scale speed, travel distance and more. The rotation is measured by a 3D hall sensor.

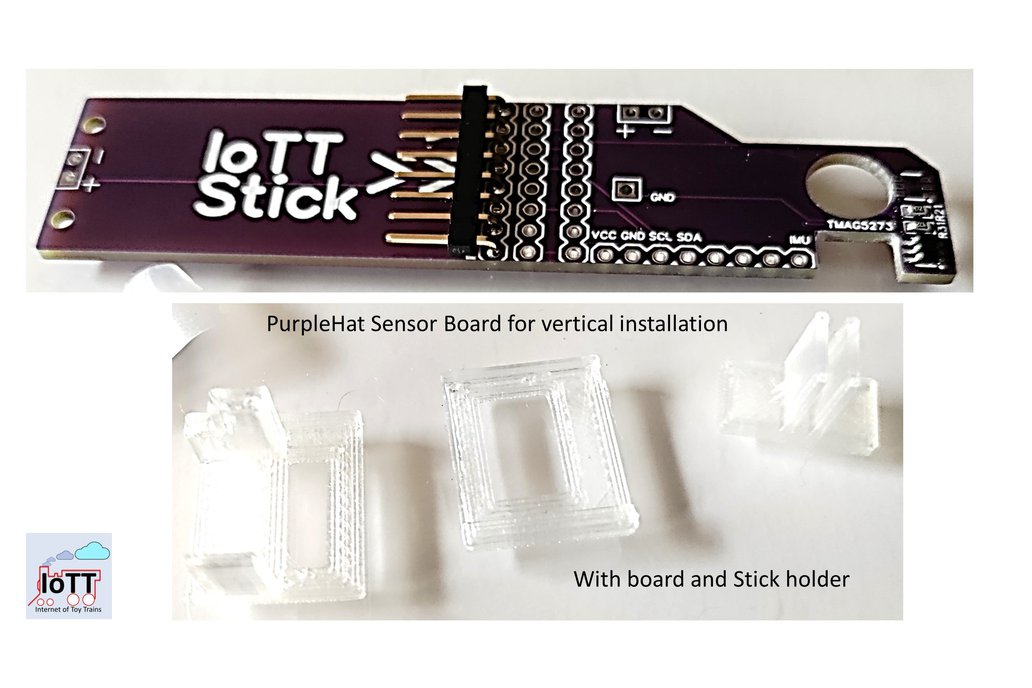

The HO scale kit for vertical mounting consists of following items: - Sensor PCB with hall sensor for vertical (upright) installation - mounting brackets for installation - Pin header for external battery - 2 neodymium magnets (3mm for HO, or 12mm (with mounting bracket) for G Scale)

NOTE: The kit does not include the IoTT Stick.

The calculation is provided by an IoTT Stick (sold separately), and the results are shown on the stick display. In addition, the stick can send the results to a web browser to be displayed as speed graph. In Speed Matching mode, the PurpleHat sensor can autonomously analyze the speed characteristics of a locomotive and then calculate the speed table settings so that the locomotive has a defined scale speed for every speed setting on the throttle. This allows for setting speed tables in about 2 minutes per locomotive.

Why did you make it?

The PurpleHat sensor is the result of an ongoing development which finally will result in a Layout Positioning System, allowing for position feedback of the trains without installation of a large number of block occupancy sensors.

What makes it special?

This is a fully functional track measuring device for N, HO, or G scale. It comes with a set of mounting brackets to support several installation options. It is easy to install and does not require to install a sensor on the measured axle itself.
