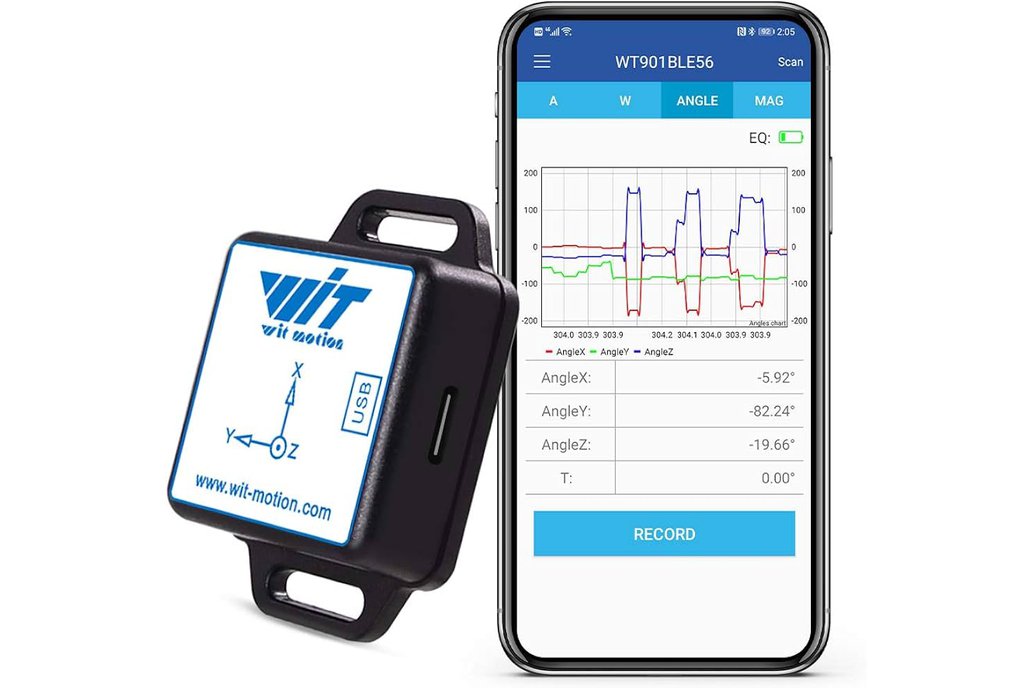

The WitMotion WT901BLECL is a high-precision MPU9250 IMU (Inertial Measurement Unit) sensor with BLE 5.0 wireless communication, designed for motion tracking, angle measurement, and orientation detection. This 9-axis IMU includes an accelerometer, gyroscope, and magnetometer, providing real-time data with high stability and accuracy.

Key Features: ✅ 9-Axis Motion Tracking: Includes a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer for precise orientation sensing. ✅ BLE 5.0 Wireless Communication: Ensures low power consumption and stable 50m wireless transmission range for seamless data transfer to iOS/Android devices. ✅ High-Precision Inclinometer: Provides accurate tilt angle measurements with dynamic/static calibration for enhanced performance. ✅ Real-Time Data Output: Supports multiple output formats (e.g., quaternion, Euler angles, acceleration, angular velocity, and magnetic field data). ✅ Broad Compatibility: Works with smartphones, PCs, and embedded systems via BLE or UART (TTL 3.3V/5V) for flexible integration. ✅ Industrial-Grade Stability: Offers high anti-interference capability and low drift performance, ideal for robotics, UAVs, human motion tracking, and industrial applications. ✅ Compact & Lightweight Design: Ensures easy installation in space-constrained applications.

Technical Specifications: Chipset: MPU9250 Axes: 3-Axis Accelerometer + 3-Axis Gyroscope + 3-Axis Magnetometer Communication: BLE 5.0 / UART (3.3V-5V TTL) Angle Measurement Range: ±180° Acceleration Range: ±2g/4g/8g/16g Gyroscope Range: ±250/500/1000/2000°/s Magnetometer Range: ±4900µT Sampling Rate: 200Hz Power Supply: 3.3V-5V Operating Temperature: -40°C to +85°C Wireless Transmission Distance: Up to 50 meters (BLE) Applications: ✅ Robotics & Automation – Motion sensing, navigation, and balance control ✅ Drones & UAVs – Flight stabilization and orientation tracking ✅ Human Motion Tracking – Sports analysis, VR/AR, and medical rehabilitation ✅ Industrial Inclinometers – Machinery tilt monitoring and vibration analysis ✅ Self-Balancing Vehicles – Gyro stabilization and movement control ✅ Scientific Research & Education – Motion capture and IMU-based experiments
