BrewPi-ESP "All-in-One" Controller PCB - US Outlet Case

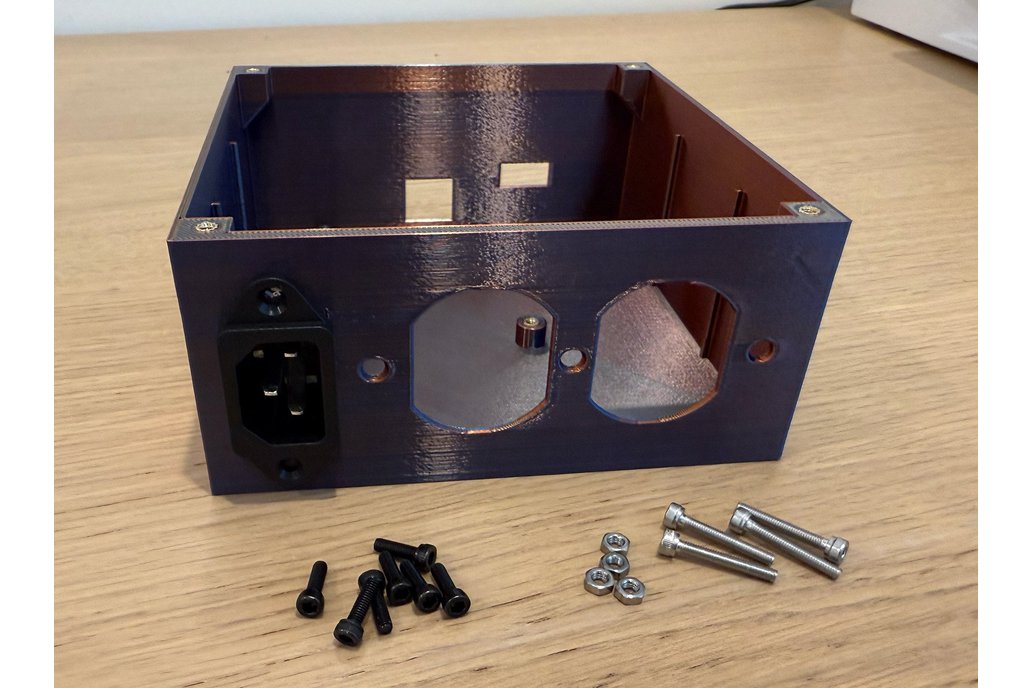

This is the case design I use for my BrewPi-ESP builds that use the 'All-in-One' PCB. It incorporates a standard US duplex outlet and IEC-320 C14 power inlet.

This version of the case is designed to have the PCB and case lid secured with heat set inserts.

Bill of Materials

In order to assemble this case, you will need the following in addition to the fully assembled "main" controller PCB & common components:

• Also needed (not listed) is one of the two screws that typically comes attached to the top/bottom of the US Duplex Outlet
• Also optional are 3 Female "Quick Connectors" which can be used to easily connect wires to the IEC-320 C14 power inlet
• For all of these components, please keep in mind that you will be powering devices that can pull several amps of current. Be certain to select the appropriate gauge of wire for your build.

NOTE -- This listing is for the case only, and does not include the PCB itself. If you want to purchase the PCB along with a case, you can purchase them together from the "main" PCB's product page and save on shipping.

Lid Options

There are currently three lid options for this case: LoLin D32 Pro LCD - Lid with a cutout for the Lolin D32 Pro's LCD screen (2.4" TFT) Generic 2.8" TFT - Lid with a cutout for a "generic" 2.8" 320x240 TFT Screen * Blank - A blank lid with no cutout for LCD screens.

If you need a different lid designed, please reach out directly before purchasing.
