BrewPi-ESP “Discrete Component” US Outlet Case Base

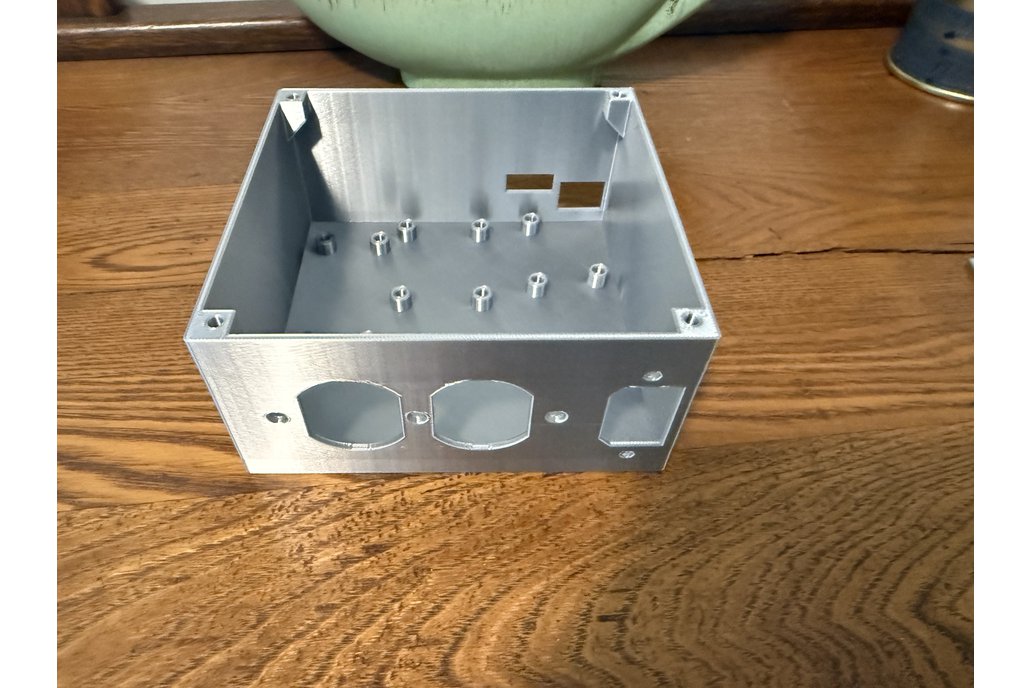

This is the case design I use for all of my BrewPi-ESP builds which have discrete components (separate power supply, relay board, and “connector” PCB). It incorporates a standard US duplex outlet and IEC-320 C14 power inlet.

This version of the case includes three standoffs for the "main" PCB thus allowing it to be used with both the two screw BrewPi-ESP8266/ESP32-S2 and three screw BrewPi-ESP32 PCBs. This version of the case is NOT compatible with the “All-in-One” BrewPi PCBs.

This version of the case is my latest revision, which replaces many of the nuts with heat set inserts, eliminating the screws that used to poke through the bottom of the case.

Bill of Materials

In order to assemble this case, you will need the following in addition to the fully assembled "main" controller PCB & common components:

• • This includes the heat set inserts to receive the screws from the lid

• Also needed (not listed) is one of the two screws that typically comes attached to the top/bottom of the US Duplex Outlet

• Also optional are 3 Female "Quick Connectors" which can be used to easily connect wires to the IEC-320 C14 power inlet
• For all of these components, please keep in mind that you will be powering devices that can pull several amps of current. Be certain to select the appropriate gauge of wire for your build.

This listing includes the screws/nuts/heat set inserts. I also am offering the IEC-320 inlet as an optional add-on. This listing is for the case only, and does not include the "main" PCB, relay board, controller, or power supply. If you need a PCB as well, you can purchase this case from the PCB’s product page and save.

Lid Options

There are three lid options for this case: Blank - A blank lid with no cutout for LCD screens. LCD2004 - Lid with a cutout for the "classic" BrewPi LCD screen (4 lines x 20 characters) LoLin D32 Pro LCD - Lid with a cutout for the Lolin D32 Pro's LCD screen (2.4" TFT) “Generic” 2.8” TFT - Lid with a cutout for a generic 240x320

If you purchase the lid, it will include the necessary screws to secure the screen to the lid, and secure the lid to the base.
