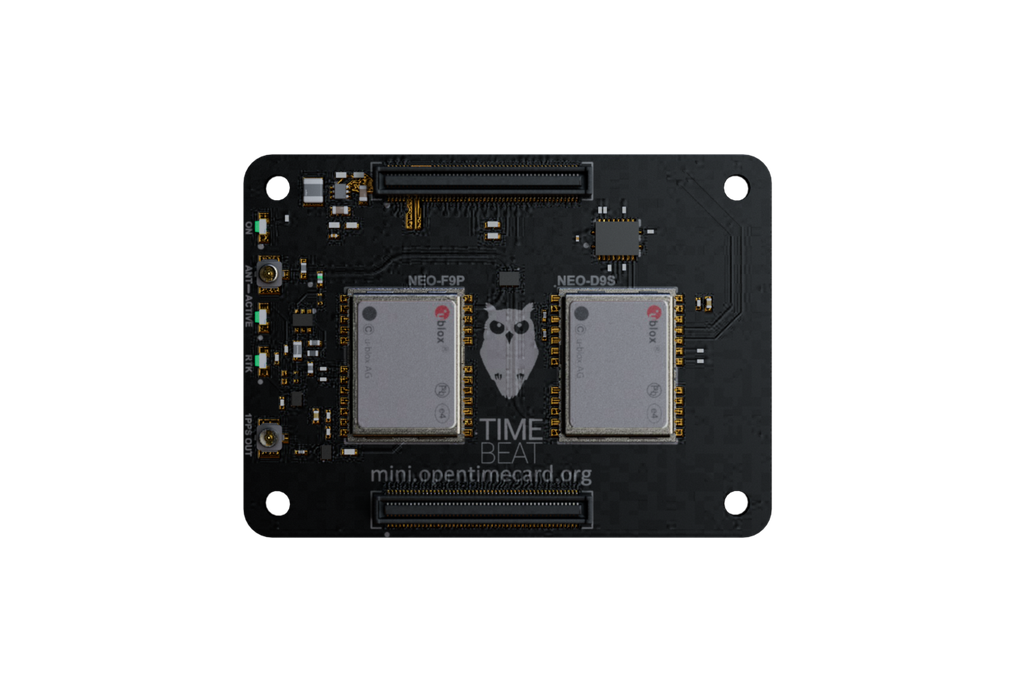

General Features 1x ANT: u.fl IPEX-1 connector for connecting GNSS antenna input. 1x PPS OUT: u.fl IPEX-1 connectors 200 Pin top: Direct connection for the Raspberry Pi CM4 footprint Highlights: - Multi-band receiver delivers centimeter-level accuracy in seconds - Concurrent reception of GPS, GLONASS, Galileo, and BeiDou - Multi-band L1/L5 RTK with fast convergence times and reliable performance - Centimeter accuracy in a compact and energy-efficient module - Easy integration of RTK for fast time-to-market - Native support for PointPerfect simplifies integration - Small form factor

Ublox NEO-F9P

84-channel u-blox F9 engine GPS L1C/A L5, GLO L1OF, GAL E1B/C E5a, BDS B1I B2a, QZSS L1C/A L1S L5, SBAS L1C/A NavIC L5

RTK Accuracy: - Nav. update rate RTK up to 20 Hz1 - Position accuracy RTK 0.01 m + 1 ppm CEP - Convergence time2 RTK < 10 sec

Ublox NEO-D9S Highlights: - First mass-market L-band GNSS correction module - Access to centimeter-level GNSS corrections globally - Freedom to select GNSS correction data delivery channel - High scalability for industrial and automotive applications - Allows selection of desired L-band GNSS correction service

GNSS Feature - Purpose: GNSS correction data receiver for high-precision applications - Supported Correction Data: Receives GNSS correction data for augmentation services like Precise Point Positioning (PPP) - Frequency Bands: L-band (1525 - 1559 MHz), commonly used for correction data transmission - Channel Support: Dual-channel capability, allowing reception of multiple correction data streams - PPP-RTK Compatibility: Enables Precise Point Positioning with Real-Time Kinematic (PPP-RTK) for cm-level accuracy
