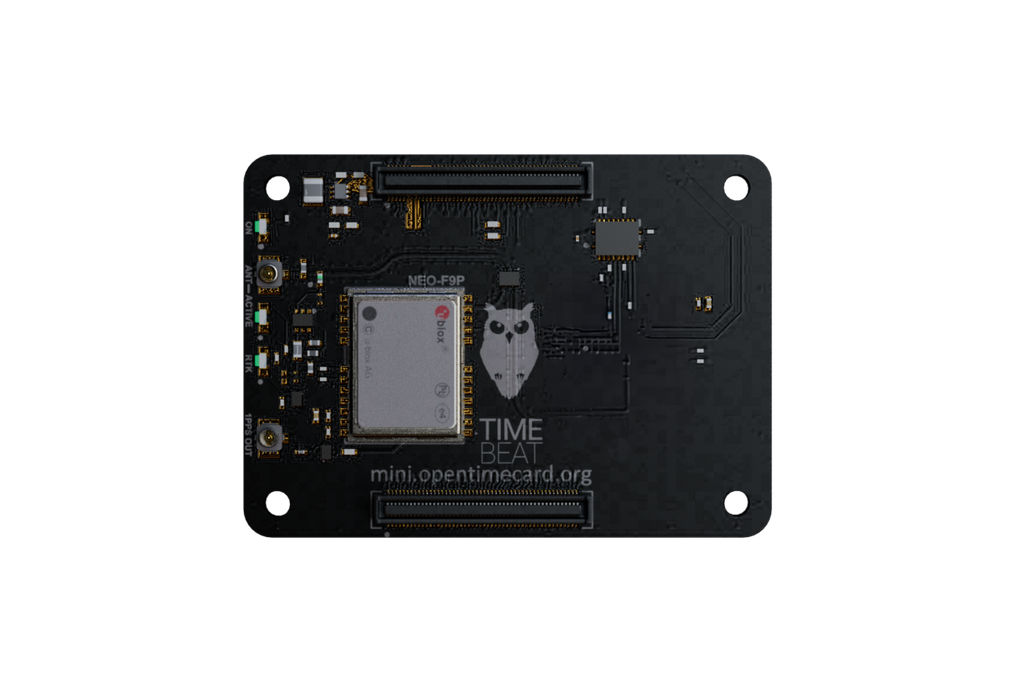

General Features 1x ANT: u.fl IPEX-1 connector for connecting GNSS antenna input. 1x PPS OUT: u.fl IPEX-1 connectors 200 Pin top: Direct connection for the Raspberry Pi CM4 footprint

GNSS Features - Ublox NEO -F10T supports all four global satellite constellations, it is ideal for global deployments with single HW SKU - Supports the L1/L5/E5a configuration - Receiver type: GPS L1C/A, L5 GLO L1OF GAL E1B/C, E5a BDS B1C, B2a QZSS L1C/A, L5 NavIC L5 SBAS L1C/A: WAAS, EGNOS, L1Sb, GAGAN - Timing accuracy: 10 ns (1-sigma, clear sky, dual-band mode) - Time pulse jitter: ±8 ns - Reacquisition: 1ns - Cold starts Acquisition: 26s
