A 3-slot backplane kit for Z50Bus with narrow (0.6"/15.2mm) spacing
Designed by Stephen C Cousins in United Kingdom
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
EU countries: Please note Tindie does not collect VAT. You will be charged VAT and a handling fee by your government when the parcel arrives in your country.
This backplane has three Z50Bus compatible slots with 0.6" spacing. Backplanes with narrow slot spacing (eg. 0.6″) are best suited to building compact systems, while wide slot spacing (eg. 0.8″) is m…
Read More…This backplane has three Z50Bus compatible slots with 0.6" spacing.
Backplanes with narrow slot spacing (eg. 0.6″) are best suited to building compact systems, while wide slot spacing (eg. 0.8″) is more convenient when experimenting and developing hardware.
It is assumed the system will be powered by one of the Z50Bus cards, such as a serial card or a dedicated power supply card (eg. SC502).
SC500 series backplanes include:

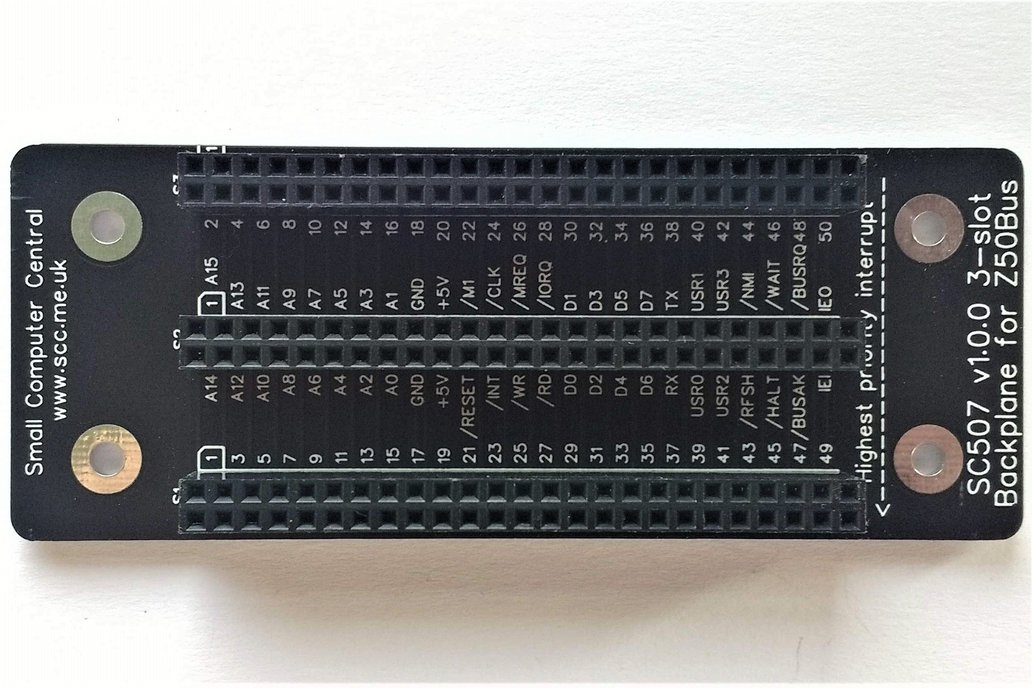

This kit includes all the components needed to make the card, as shown in the first picture. Other cards and backplanes shown in the other pictures are not included. You will require tools, solder, and cleaning materials to assemble this kit.
The documentation can be found at www.smallcomputercentral.com
