SC603 is a serial module using a Z80 SIO/2, designed for the 40-pin RC2014/RCBus. It provides two asynchronous serial ports and has its own clock oscillator and dividers to set baud rates from 2400 to 115200.

Baud rates are independent of the main bus clock and can be set with jumpers to 2400, 4800, 9600, 14400, 19200, 38400, 57600 or 115200 baud. Flow control is supported in both directions with RTS/CTS signals.

Documentation

The documentation can be found at www.smallcomputercentral.com

Compatibility

This module conforms fully to the RCBus specification v1.0 for 40-pin systems.

The RCBus specification includes RCBus-2014 (both RC2014 standard 40-pin bus and RC2014 enhanced 60-pin bus) and also the full 80-pin RCBus. The 80-pin RCBus provides support for advanced Z80 features, such as the interrupt daisy-chain, as well as support for other processor families.

The Kit

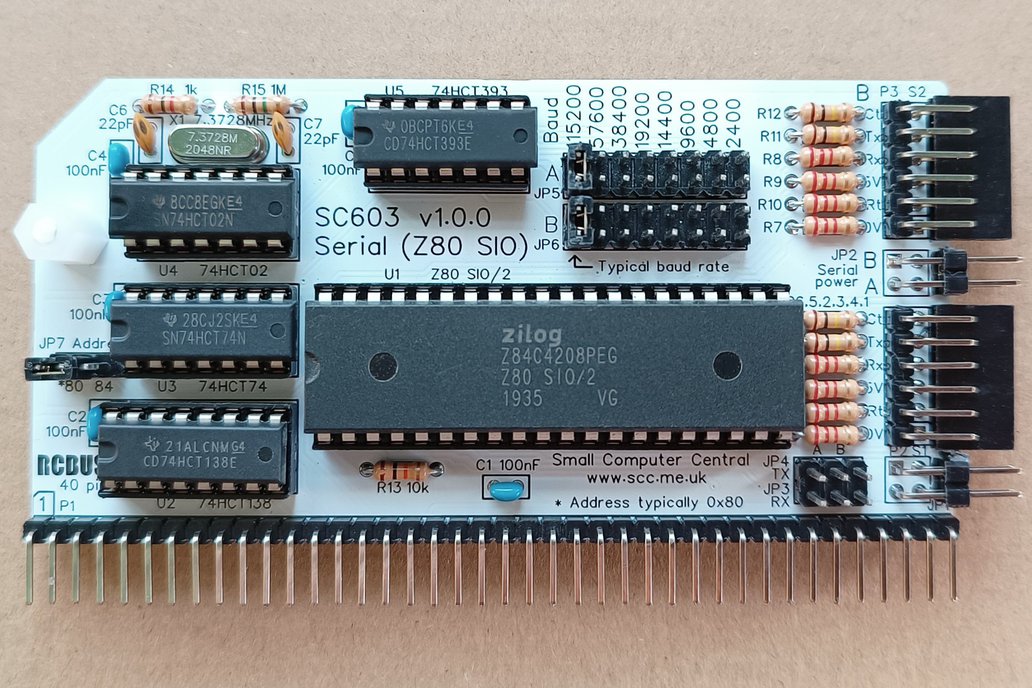

The full kit includes all the components needed to make the module, as shown in the first picture. Other modules and backplanes shown in the other pictures are not included. You will require tools, solder, and cleaning materials to assemble this kit.

All of the integrated circuits supplied in this kit are brand new parts from major suppliers, such as Mouser, DigiKey, RS and Farnell.

Printed Circuit Board

The printed circuit board is available on its own here.

Complete Systems

If you are looking for a complete system the following products might be appropriate.

• SC691 RCBus-40pin Z80 RomWBW SCM CP/M Computer
• SC114 RCBus-40pin Z80 SCM & BASIC Motherboard
• SC126 RCBus-80pin Z180 RomWBW CP/M Motherboard
• SC720 RCBus-80pin Z80 RomWBW CP/M Motherboard
• SC791 RCBus-80pin Z80 RomWBW CP/M Computer
• SC792 RCBus-80pin Z180 RomWBW CP/M Computer
• SC794 RCBus-80pin Z80 RomWBW SCM CP/M Computer
• SC131 Pocket-sized Z180 RomWBW CP/M computer
