This is a Compact Flash storage module, designed for RC2014/RCBus-40pin
Designed by Stephen C Cousins in United Kingdom
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
EU countries: Please note Tindie does not collect VAT. You will be charged VAT and a handling fee by your government when the parcel arrives in your country.
SC604 is a Compact Flash storage module designed for the 40-pin RC2014/RCBus. It is compatible with RomWBW and CP/M. The main features of this module are: RC2014 compatible Tight address decoding Op…
Read More…SC604 is a Compact Flash storage module designed for the 40-pin RC2014/RCBus. It is compatible with RomWBW and CP/M.
The main features of this module are:
The documentation can be found at www.smallcomputercentral.com
This module conforms fully to the RCBus specification v1.0 for 40-pin systems.
The RCBus specification includes RCBus-2014 (both RC2014 standard 40-pin bus and RC2014 enhanced 60-pin bus) and also the full 80-pin RCBus. The 80-pin RCBus provides support for advanced Z80 features, such as the interrupt daisy-chain, as well as support for other processor families.

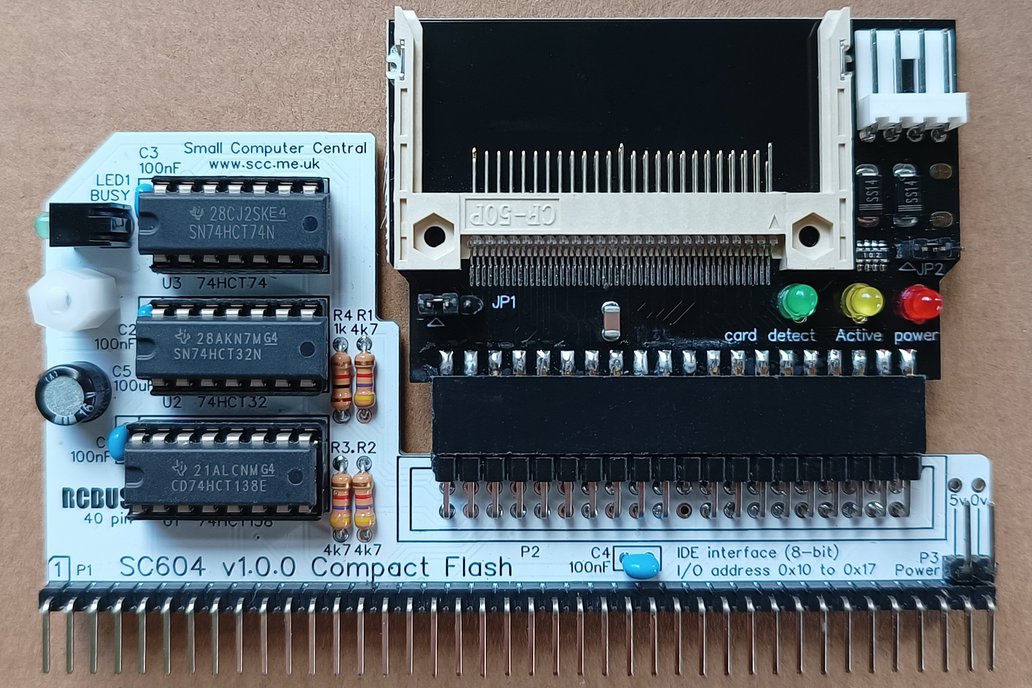

The full kit includes all the components needed to make the module, as shown in the first picture. Other modules and backplanes shown in the other pictures are not included. You will require tools, solder, and cleaning materials to assemble this kit.
The kit includes the Compact Flash adapter shown in the first picture, but you will need to provide a Compact Flash card.
All of the through-hole integrated circuits supplied in this kit are brand new parts from major suppliers, such as Mouser, DigiKey, RS and Farnell.
The printed circuit board is available on its own here.
If you are looking for a complete system the following products might be appropriate.
