This module provides a Real Time Clock, designed for RC2014/RCBus-40pin
Designed by Stephen C Cousins in United Kingdom
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
EU countries: Please note Tindie does not collect VAT. You will be charged VAT and a handling fee by your government when the parcel arrives in your country.
The module has the following features: DS1302 real time clock and calendar Configurable I/O port address Compatible with Z80 and Z180 systems Software support included in RomWBW Compatible with RCBu…
Read More…The module has the following features:
The documentation can be found at www.smallcomputercentral.com
This module conforms to the RCBus specification v1.0 for 40-pin systems.
The RCBus specification includes RCBus-2014 (both RC2014 standard 40-pin bus and RC2014 enhanced 60-pin bus) and also the full 80-pin RCBus. The 80-pin RCBus provides support for advanced Z80 features, such as the interrupt daisy-chain, as well as support for other processor families.

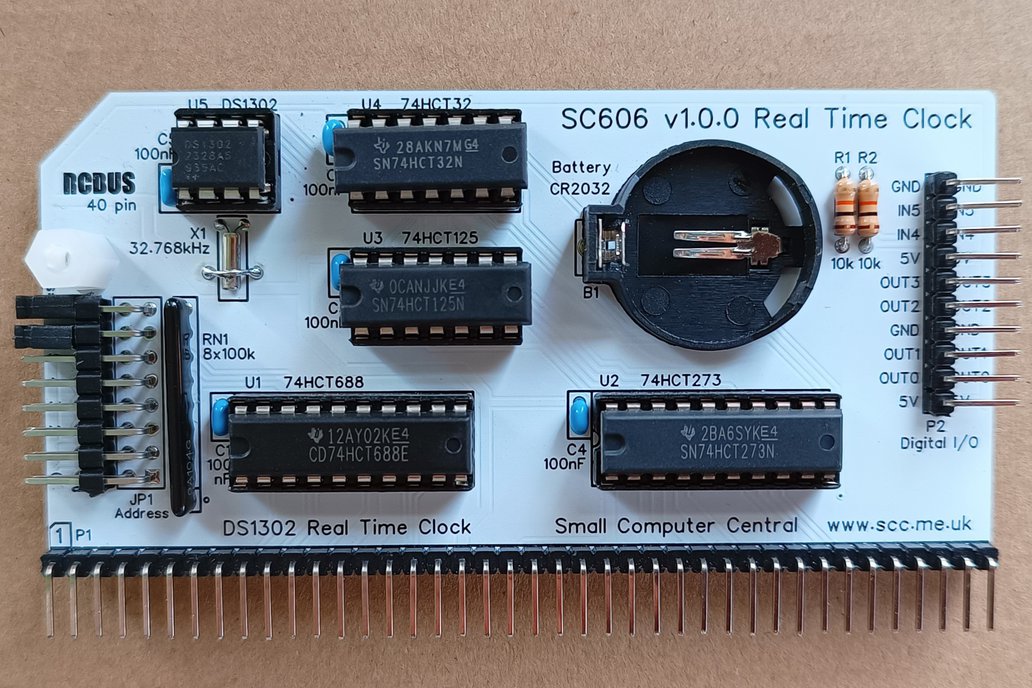

The full kit includes all the components needed to make the module, as shown in the first picture. Other modules and backplanes shown in the other pictures are not included. You will require tools, solder and cleaning materials to assemble this kit. A CR2032 battery is also required to maintain the clock when the retro computer is turned off.
The printed circuit board is available on its own here.
If you are looking for a complete system the following products might be appropriate.
