This is a 10-slot extendable modular backplane, designed for RC2014/RCBus-40pin
Designed by Stephen C Cousins in United KingdomThis seller is taking a break until April 6, 2025. Sign up below to get an email when they're back!
No shipping info available.
Set destination country to see options
Shipping to starts at
Free shipping is available to !
Ships from
This item does not ship to .
More Info
Sign up and we'll send a reminder when the seller returns!
EU countries: Please note Tindie does not collect VAT. You will be charged VAT and a handling fee by your government when the parcel arrives in your country.
This backplane includes 10 vertical bus sockets for 40-pin RCBus/RC2014 compatible modules, a 5-volt power input with on/off switch, a power indicator LED, and an optional voltage supervisor and rese…
Read More…This backplane includes 10 vertical bus sockets for 40-pin RCBus/RC2014 compatible modules, a 5-volt power input with on/off switch, a power indicator LED, and an optional voltage supervisor and reset device. It also has a horizontally mounted backplane extension socket.
The horizontal socket allows the connection of a backplane extension section or an RCBus module. Horizontal mounting of a module can be useful when debugging hardware or developing ROM-based software.
The documentation can be found at www.smallcomputercentral.com
This backplane conforms fully to the RCBus specification v1.0 for 40-pin systems.
The RCBus specification includes RCBus-2014 (both RC2014 standard 40-pin bus and RC2014 enhanced 60-pin bus) and also the full 80-pin RCBus. The 80-pin RCBus provides support for advanced Z80 features, such as the interrupt daisy-chain, as well as support for other processor families.

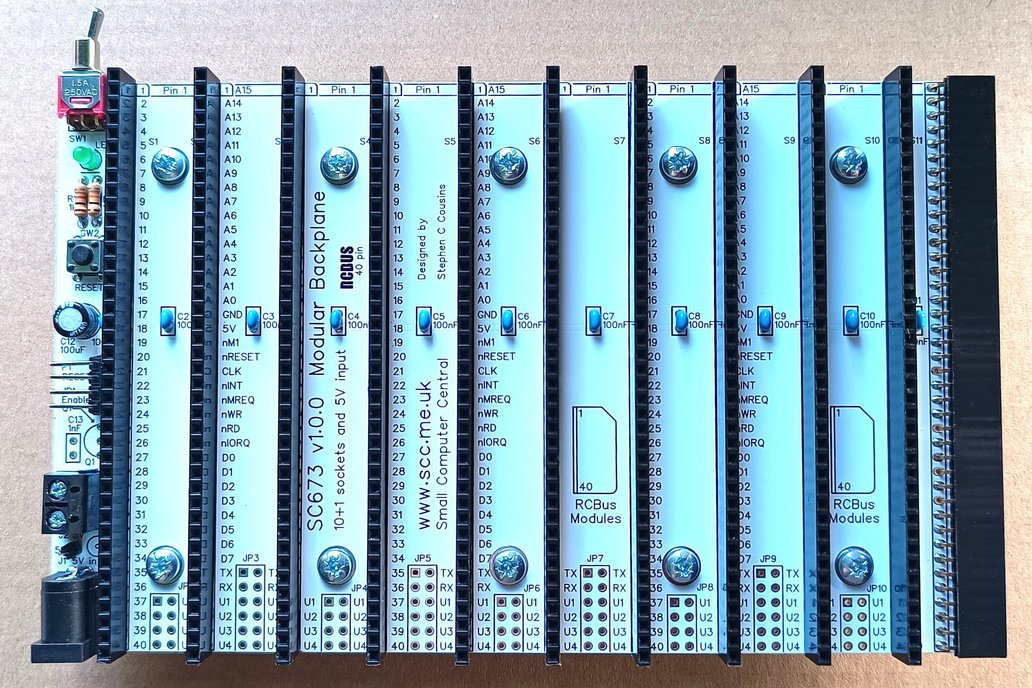

The full kit includes all the components needed to make the backplane, as shown in the first picture, including mounting screws and spacers. Other modules and backplanes shown in the other pictures are not included. You will require tools, solder, and cleaning materials to assemble this kit.
The printed circuit board is available on its own here.
