USBMIDIKLIK 4x4 BOARD MIDI TRS TYPE A - PROTO

Name: USBMIDIKLIK 4x4 BOARD MIDI TRS TYPE A - PROTO
SKU: 17323
Price: 49.00 USD
Availability: InStock

The USBMidiKlik 4X4 board is an open source USB MIDI interface with 3 IN / 3 Out and powerful routing features

Designed by TKG Labs in France

USBMIDIKLIK 4x4 BOARD MIDI TRS TYPE A - PROTO 1

USBMIDIKLIK 4x4 BOARD MIDI TRS TYPE A - PROTO 2

USBMIDIKLIK 4x4 BOARD MIDI TRS TYPE A - PROTO 3



2023-11-05T13:34:40.776Z-MIDI-RP-054-TYPEA (1).jpg

$49.00

Quantity*

+ —

4 MIDI DIN rail board to TRS Type A

This TRS TYPE A converter board gives your umk4x4 a 4 DIN rails for MIDI inputs and/or outputs. 4 x 3.5mm 1M long stereo cables are provided.

DIN female to TRS 3.5mm male type A converter cables

These cables allows you to connect your MIDI DIN devices directly to the UMK4x4 type A interface.

Mini jack stereo cables 3.5mm any color 1M long

Stereo cable male to male 3.5mm mini jack 1 meter long allowing UMK4x4 direct connection with midi devices TRS type A

Only 1 left in stock, order now!

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

The USBMidiKlik 4X4 board is an open source USB MIDI interface with 3 IN / 3 Out and powerful routing features

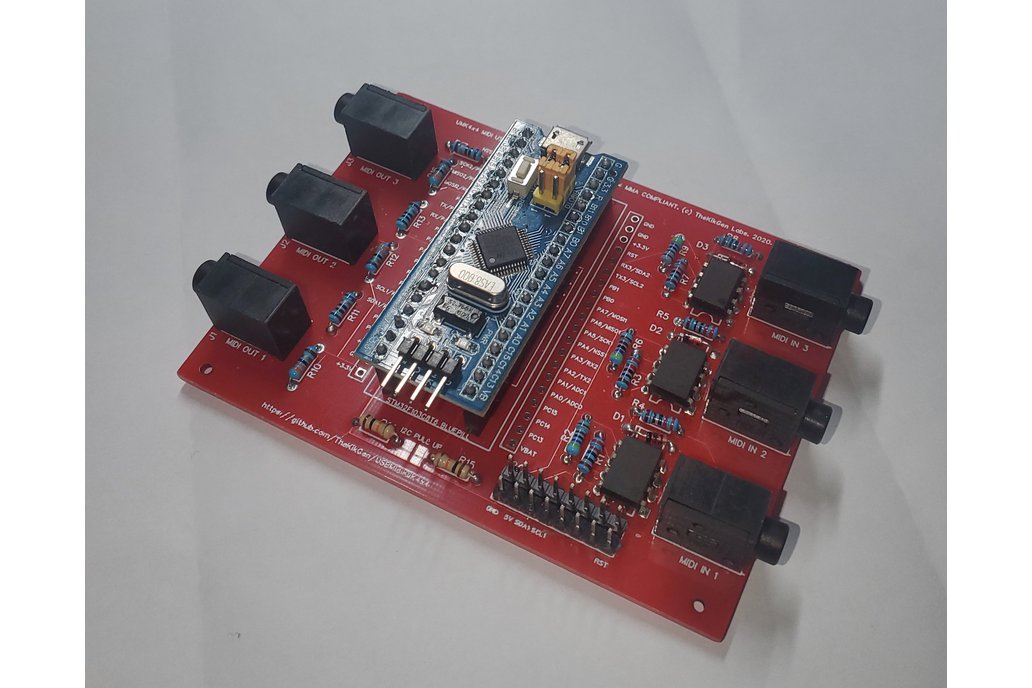

This is a ready to use prototype board with all components soldered. NB : Prototypes are tested and fully functional but may have track corrections due to routing errors during PCB design/fabrication…

This is a ready to use prototype board with all components soldered.

NB : Prototypes are tested and fully functional but may have track corrections due to routing errors during PCB design/fabrication. The bus connector and bus pull up resistors may be not present. This does not affect at all the operation of the board. Please let us know if you purchase at less 2 boards that you wish to combine. We will eventually add connectors and provide a specific cable free of charge. RED BATCH - LIMITED STOCK !

The USB MidiKLIK 4X4 (aka UMK4x4) is a 3 IN 3 OUT midi USB interface with very powerful routing features, allowing you to transform, e.g., the interface into a MIDI MERGE or a MIDI THRU very easily.

The board is USB Powered, so no additional power supply necessary. It works driverless as a class compliant device, with Windows XP SP3, Vista 32 and 64 Bit, Windows 7 / 8 / 10 32 and 64 Bit, and Mac OS X, Linux ALSA, Akai MPC Live/X/Force, IOS, Android.

The board sold is the one with the red arrow. An example is shown with the 4 DIN to TRS type A rack (the blue arrow), not included, but available at the store here (ask for grouping to reduce shipping cost).

Specs :
