What is it?

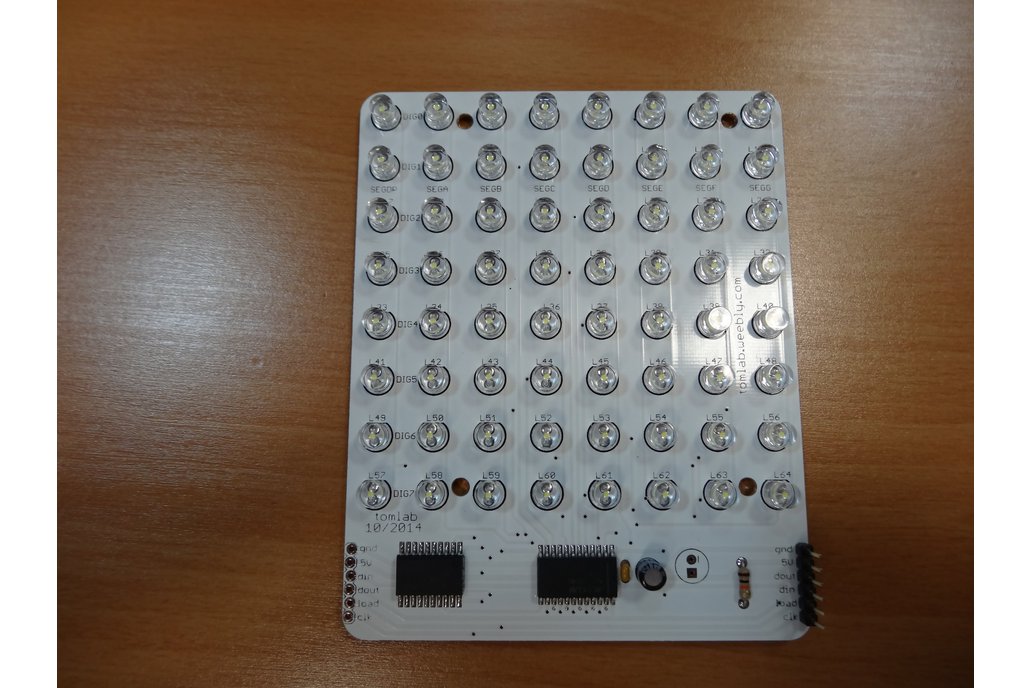

Cascadable 8x8 LED matrix module with classic through hole LEDs driven with MAX7219 chip on board. Boards can be
cascaded in line fashion. board dimension is 3.55" by 4.475". Distance be…
Cascadable 8x8 LED matrix module with classic through hole LEDs driven with MAX7219 chip on board. Boards can be
cascaded in line fashion. board dimension is 3.55" by 4.475". Distance between LEDs is 0.45" so the board is
visible from large distances.
Breakaway headers are placed 50mil from the edge of the board so that cascading of the boards is easily made with
jumpers
Why did you make it?
What makes it special?
The board is really great for newbies trying to learn how to interface their famous microcontroller; AVR, PIC or
whatever to MAX7219 chip.
It is also great board for building larger displays showing text, graphics, animations etc...
AT the moment I have only one board in warm white (almost yellow) color but there will be more boards very soon!
You will receive completely soldered (except breakaway headers) and tested board.
