Tube 5L3838 small-sized single-beam (5LO-38I, 5L 38I, 5L038I, 5L0-38I, 5L0 38I) For visual observation of various electrical processes in radio electronic devices. The color of the screen is green. The diameter of the working part of the screen is 44mm.

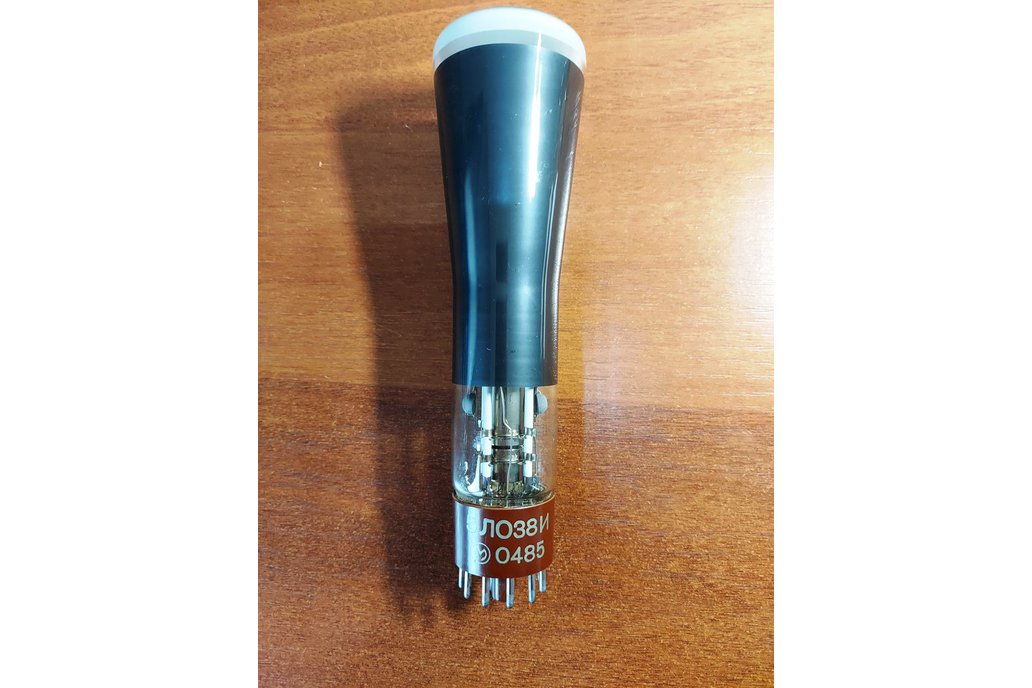

Small-sized single-beam tube 5L3838 with a rounded screen and a convex surface. It is intended for visual observation of various electrical processes in radio electronic devices.
The color of the glow of the screen is 5L38 and green. The diameter of the working part of the screen is 44mm. The width of the focused line in the center of the screen is not more than 0.5 mm. The afterglow time is not more than 0.1 s.
Electrode leads: 1, 11-heater; 2-cathode; 3 - temporary deflection plate X1; 4-first anode; 6-signal deflecting plate Y1; 7 - the second anode; 8 - temporary deflection plate X2; 9 - signal deflecting plate V2; 10 - modulator; 5-do not connect.
Decoration - glass with a plinth.
