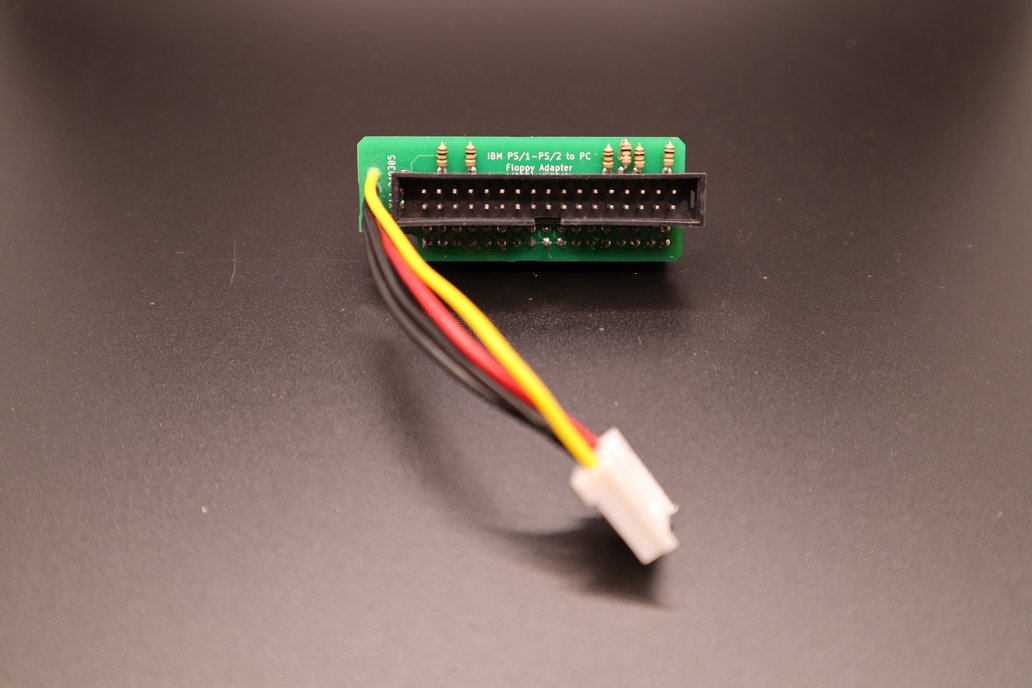

This is an adapter/converter to allow IBM PS/1 and PS/2 computers to use standard 3.5'' floppy drives. These models of IBM computers have the power provided over the 34 pin connector, which will fry a "modern" floppy drive. This adapter routes the power out of the 34 pin connector into a traditional 4-pin Molex connector.

Pin 4 (Drive Type ID 1) is passed through directly to the drive.
This is not for systems/drives with an edge connector.

Here is a list of models this was confirmed to work on, I will update the list as people provide feedback.

• PS/1
• 25-286
• 30-8086
• 30-286
• 55 SX
• 90
• L40 SX (original battery won't fit when the adapter is used)
• P70 (Use a floppy drive less than 140mm in length with the faceplate removed)
• P75 (Use a floppy drive less than 140mm in length with the faceplate removed)
• Reply TurboBoard 60/65/80

This adapter WILL NOT work with systems that require media sense drives!!! This adapter WILL WORK with most Goteks!!!!
