Pico ATX Based Power Supply for the Macintosh SE and SE/30

This custom-designed PCB lets you build your own Apple Macintosh SE/30 or SE AC-DC power supply using all-new, modern components. It accepts either a 20 pin or 24 pin Pico ATX PSU. A completed unit includes a high quality 12 VDC, 80 W AC-DC module and on board DC barrel plug (5mm OD x 2.5 mm ID) for direct connection of the Pico ATX PSU to the board. This design was tested with an RGEEK 20-pin 90W Pico ATX.

This product was designed to minimize the number of assembly steps for the build and the installation. This makes the Pico ATX PSU, easier to update the PSU in your SE type machine, while minimizing the impact of the update to the rest of the machine.

Key Features

• Modular design - choose your own Pico ATX power supply to install on the board
• High quality 12 VDC, 80 W power supply included on the board
• Compatible with Apple, Sony, and ASTEC versions (Sony configuration pictured in listing)
• Minimal impact - retain the tactile feel and sound of the original as you turn the machine on and off
• No need to harvest connector components from original PSUs. You can keep your original board intact
• Includes external board fuse for additional safety and serviceability
• Drop-in bespoke design for the PSU enclosure with minimal impact to the original machine
• LED power indicator footprints for an internal light source to your transparent SE case
• Retains EMI shielding by keeping the PSU inside the original enclosure

What are you getting?

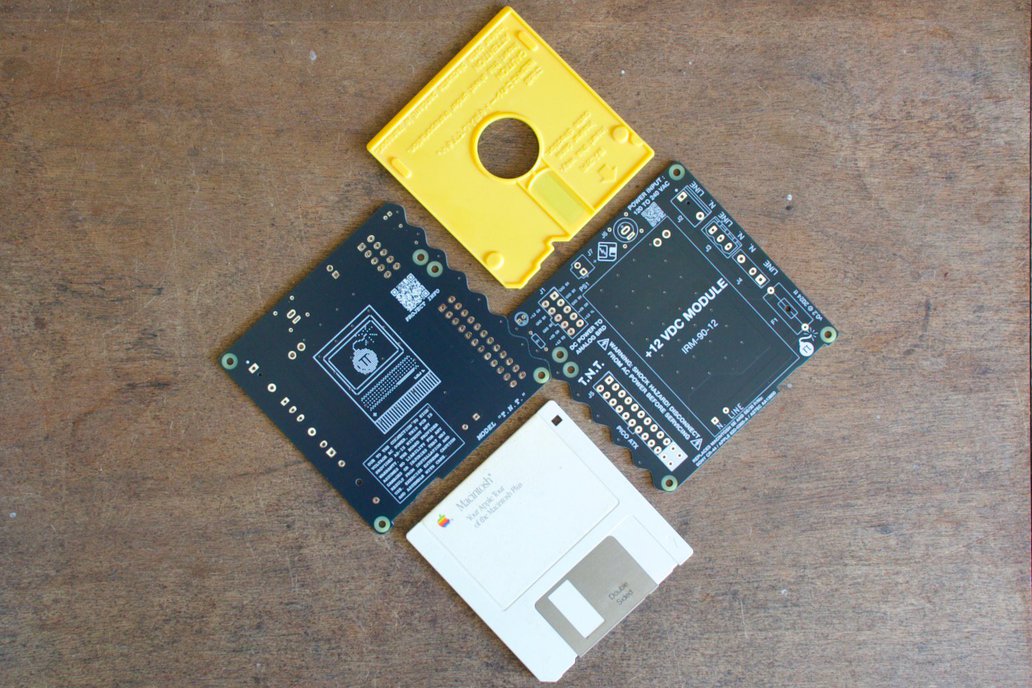

This listing is for the bare PCB and cable assembly as pictured. Components and PSU enclosure are not included, but the board comes with the info you need to complete your build.
