Apple Macintosh SE/30 or SE AC-DC Power Supply

This is a new Apple Macintosh SE/30 or SE AC-DC power supply board using all-new, modern components.

The design has been bench tested using an SE/30 outfitted with a PDS 68040 accelerator, Ethernet board and SCSI emulator board, and 128 MB of RAM.

During A/B testing of this design with an ATX converted supply, it was observed to have noticeably improved CRT display ripple over the Flex ATX PSU commonly used for PSU modernizations.

What You're Getting

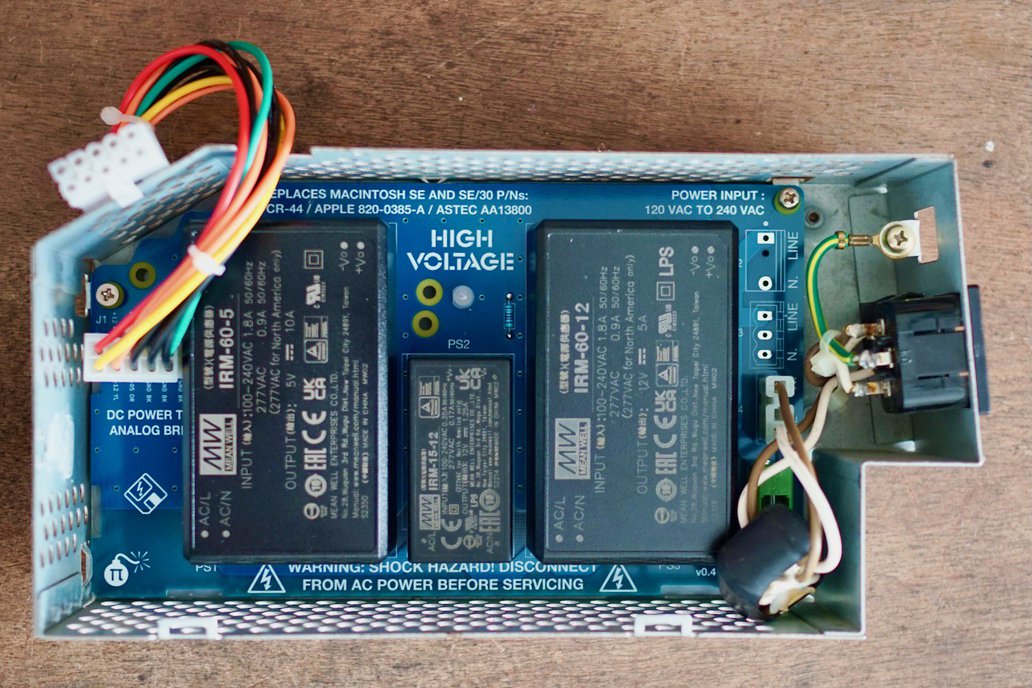

This listing is for the assembled PCB and cable assembly (with a black board). The PSU enclosure is not included. Determine the type of PSU you want to retrofit before ordering or choose the universal option.

Note: The ASTEC version of the original PSU will require cutting and stripping the wires attached to the original PSU board since the AC wires do not have a connector.

Timing

The build is configured to your order selection, so please allow a few days to ship your order.

Key Features:

• Compatible with Apple, Sony, and ASTEC versions (Sony configuration pictured in listing)
• No soldering required - No need to harvest connector components from original PSUs. You can keep your original board intact.
• Includes external board fuse for additional safety and serviceability
• Drop-in bespoke design for the PSU enclosure with minimal impact to the original machine
• LED power indicator to add another internal light source to your transparent SE case

Specifications

Note 1: The ASTEC version of the original PSU will require cutting and stripping the two AC wires attached to the PSU board. A terminal plug connector will be provided for easy installation.

Prefer to DIY?

If you would like to build this power supply yourself, check out this Tindie product page.
