48K RAM Expansion for Jupiter Ace

Name: 48K RAM Expansion for Jupiter Ace
SKU: 38018
Price: 40.00 USD
Availability: InStock

A 48K RAM pack for a Jupiter Ace computer

Designed by Tynemouth Software in United Kingdom

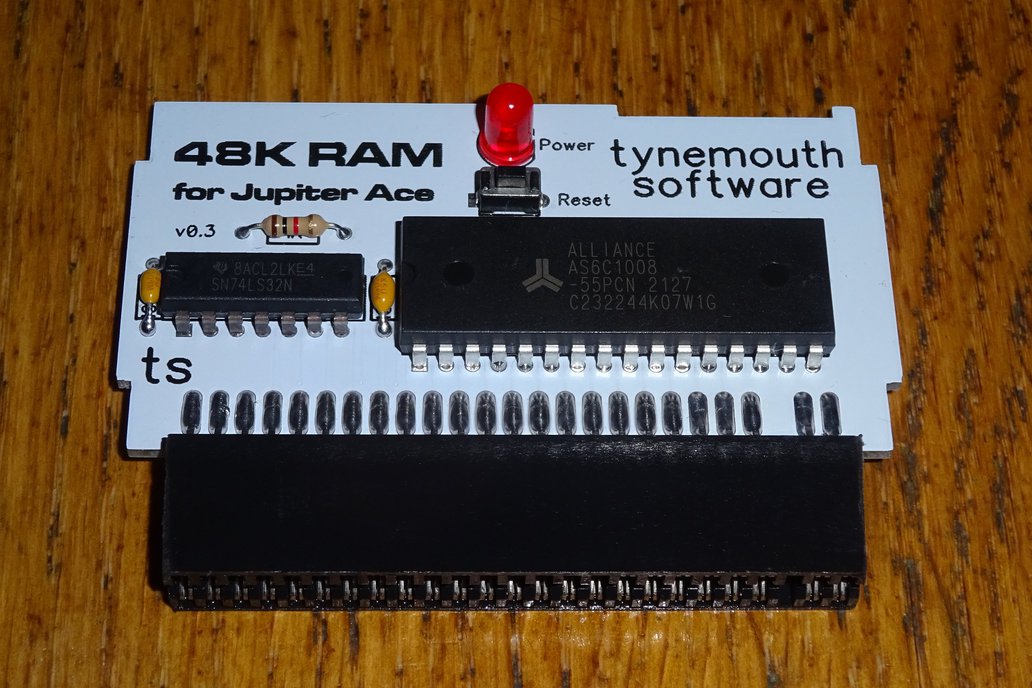

2025-03-20T21:24:49.537Z-48K RAM uncased.jpg

2025-03-20T21:24:49.537Z-48K RAM uncased angled.jpg

2025-03-20T21:47:38.243Z-Uncased with Ace.jpg

2025-03-20T21:26:21.269Z-Kit without case knolled.jpg

2025-03-20T21:24:49.537Z-48K RAM cased.jpg

2025-03-20T21:24:49.537Z-48K RAM cased angled.jpg

2025-03-20T21:24:49.537Z-48K RAM cased installed.jpg

2025-03-20T21:24:49.537Z-48K RAM cased installed rear.jpg

2025-03-20T21:24:49.537Z-Kit with case knolled.jpg

2025-03-20T21:24:49.537Z-Blanking panel.jpg

2025-03-20T21:24:49.537Z-Blanking panel installed.jpg

2025-03-20T21:24:49.537Z-This Space Has Been Left Intentionally Blank.jpg

2025-03-20T21:24:49.537Z-With 4mm LED and vertical PCB.jpg

2025-03-20T21:24:49.537Z-LED and button.jpg

2025-03-20T21:39:59.716Z-Half cased with Ace.jpg

2025-03-20T21:39:59.716Z-Half cased with Ace Close.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

All items made in the UK and shipped from the UK. EU shipping is back, but there may still be issues with GPSR.

A 48K RAM pack for a Jupiter Ace computer

What is it? This is a 48K RAM pack for a Jupiter Ace computer to expand it to the maximum 1K + 48K RAM. Why did you make it? I was repairing a Jupiter Ace computer and wanted to test it with some of …

What is it?

This is a 48K RAM pack for a Jupiter Ace computer to expand it to the maximum 1K + 48K RAM.

Why did you make it?

I was repairing a Jupiter Ace computer and wanted to test it with some of the games that require more than the standard 1K RAM.

What makes it special?

This is made using modern fast lower power RAM chips, no 4116 DRAM chips with dubious power supplies.

I have added a power LED and a reset button, both of which were missing from the Jupiter Ace itself.

Options

This has been designed to fit into a case from The Future Was 8 bit, as used on their divMMC and SD2PET (which I designed).

I can optionally include one of those cases, with the top hat button and a special 4mm flat topped LED to fit the case.

The standard version is uncased and uses a standard 5mm LED.

Available as a kit or assembled.

Notes

There is no space in the cased version for IC sockets, so none are included. If building the uncased version (or just using the case base) you can fit sockets if you prefer. Turned pin recommended.

I do not have access to a Jupiter Ace at the moment. This has been tested by several Ace users and they have reported success.

Thanks to Binary Dinosaurs and Mat Recardo for photo of their upgraded Jupiter Aces.
