Minstrel 2 or 3 PCBs

Name: Minstrel 2 or 3 PCBs
SKU: 36339
Price: 25.00 USD
Availability: InStock

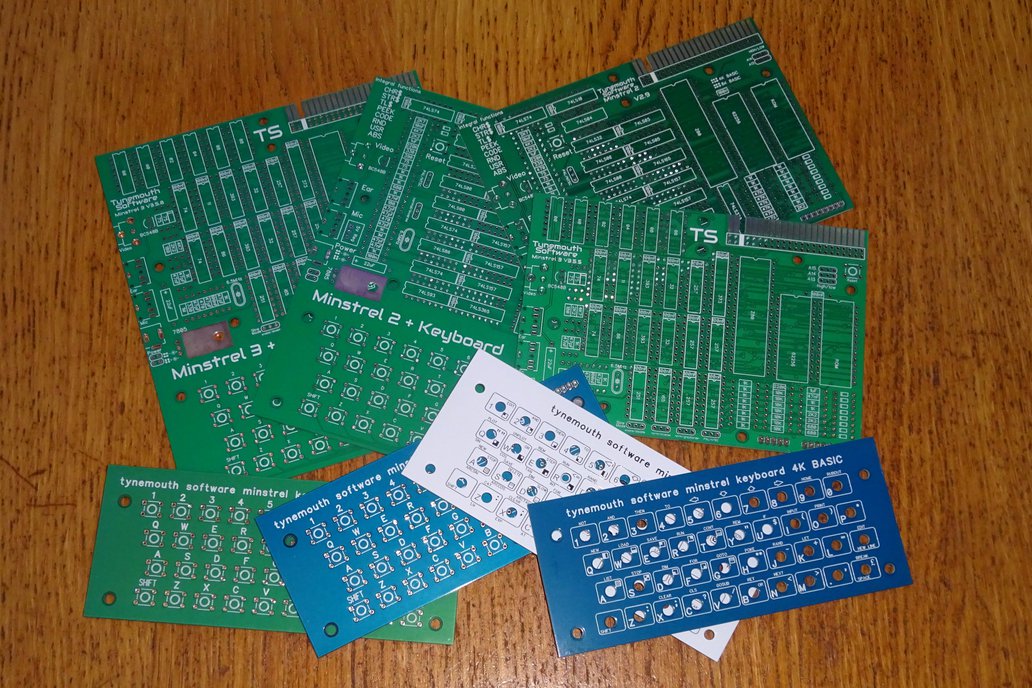

This is the PCB only options for the Minstrel 2 and 3 and various versions of the keyboard and overlays.

Designed by Tynemouth Software in United Kingdom

2024-11-05T11:10:31.969Z-Minstrel PCBs.jpg

2024-11-05T10:02:11.669Z-Minstrel 3 Keyboard PCB.jpg

2024-11-05T10:12:39.618Z-Minstrel 2 Keyboard PCB.jpg

2024-11-05T10:02:11.669Z-Minstrel 3 PCB.jpg

2024-11-05T11:14:20.910Z-Minstrel 2 V2.9 PCB.jpg

2024-11-05T11:10:31.969Z-Blue PCB set.jpg

2024-11-05T11:10:31.969Z-Green and white set.jpg

2024-11-05T11:12:57.740Z-Keyboard PCBs.jpg

$25.00

Quantity*

+ —

Main PCB*

Which version of the main PCB do you want?

Keyboard Overlay PCB

Keyboard overlays sit above the main keyboard PCB to show keywords and graphic characters

Only 2 left in stock, order now!

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

This is the PCB only options for the Minstrel 2 and 3 and various versions of the keyboard and overlays.

What is it? This is where you can buy PCB only versions of the Minstrel 2 (ZX80 compatible) and Minstrel 3 (ZX81 compatible) Z80 based computers. Why did you make it? To allow for those who wish to s…

What is it?

This is where you can buy PCB only versions of the Minstrel 2 (ZX80 compatible) and Minstrel 3 (ZX81 compatible) Z80 based computers.

Why did you make it?

To allow for those who wish to source the parts themselves rather than having them arrive in neat bags all ready to go.

What options are available?

There are multiple versions available, select the ones you want.

The no keyboard versions are ZX81 mainboard size, so can be used as a drop in replacement for a dead ZX81. They can also be used standalone with a detachable keyboard, or your own keyboard.

If choosing an integrated keyboard version, or a separate keyboard PCB, you will also need a keyboard overlay PCB. These come with keywords for 8K BASIC (ZX80 or ZX81) or 4K BASIC (ZX80 only).

All PCBs have green soldermask unless stated.

See the Minstrel 2 and Minstrel 3 listings elsewhere in my store for more information including photos of built units and documentation.

This listing is for PCBs only. All you get are the PCBs of your choice (and a printed datasheet).

NO PARTS, CONNECTORS, FIXING, SWITCHES ETC ARE INCLUDED
