Minstrel Input Monitor

Name: Minstrel Input Monitor
SKU: 38314
Price: 30.00 USD
Availability: InStock

A module for the Minstrel Expansion Bus which indicates keyboard or tape load activity on LEDs and a sounder

Designed by Tynemouth Software in United Kingdom

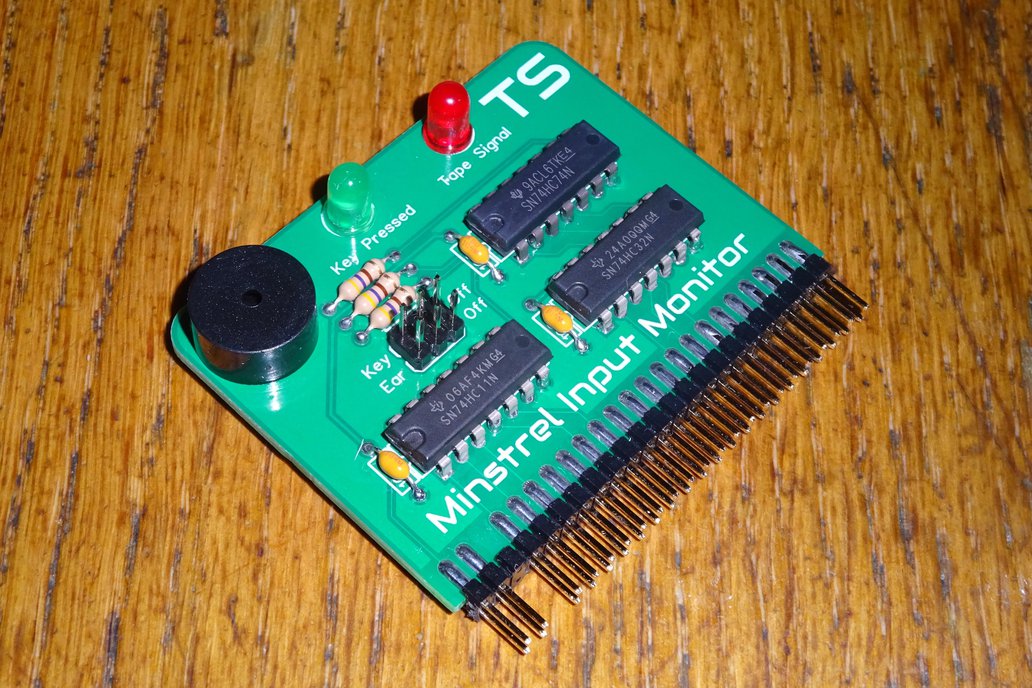

2025-04-11T15:24:37.748Z-Minstrel Input Monitor angled.jpg

2025-04-11T15:24:37.748Z-Minstrel Input Monitor.jpg

2025-04-11T15:24:37.748Z-Minstrel Input Monitor installed.jpg

2025-04-11T15:24:37.748Z-Minstrel Input Monitor installed angled.jpg

2025-04-11T15:24:37.748Z-Minstrel Input Monitor Kit Bagged.jpg

2025-04-11T15:24:37.748Z-Minstrel Input Monitor PCB.jpg

2025-04-11T15:24:37.748Z-Minstrel Input Monitor Kit Knolled.jpg

2025-04-11T15:24:37.748Z-Minstrl 3 with Minstrel Input Monitor.jpg

2025-04-11T15:24:37.748Z-Minstrel Input Monitor on Minstrel Expansion Bus Backplane.jpg

2025-04-11T15:24:37.748Z-Loading from tape.jpg

2025-04-11T15:24:37.748Z-Loading Tut-Tut.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

All items made in the UK and shipped from the UK. EU shipping is back, but there may still be issues with GPSR. US orders may be subject to tariffs.

A module for the Minstrel Expansion Bus which indicates keyboard or tape load activity on LEDs and a sounder

What is it? This is a module for the Minstrel Expansion Bus which indicates keyboard or tape load activity on a pair of LEDs and also audibly via a sounder. The keyboard LED flashes and the speaker m…

What is it?

This is a module for the Minstrel Expansion Bus which indicates keyboard or tape load activity on a pair of LEDs and also audibly via a sounder.

The keyboard LED flashes and the speaker makes a clicking noise when a key is pressed or held.

The tape LED flashes when tape data is being read, and the speaker relays the detected data.

This can be useful for monitoring load functions. The LED shows the data that has been read, rather than the analogue signal fed in, so you can adjust your cassette volume until the LED starts to flash. If load fails, the LED will stop flashing even though the tape is still playing.

A pair of jumpers allows the keypress or tape load sounds to be disabled.

Why did you make it?

I had a request for something to make a click when you press a key (similar to the way the ZX Spectrum does). Since I had decoded most of the relevant signals, it seemed useful to add the tape load as well.

What makes it special?

This is available as a kit or assembled, and can be installed directly into the Minstrel Expansion Bus slot on a Minstrel 2 or 3, or into one of the slots on the Minstrel Expansion Bus backplane, or it can be fitted with an edge connector to use with a ZX81.
