Minstrel Joystick Interface

Name: Minstrel Joystick Interface
SKU: 38316
Price: 30.00 USD
Availability: InStock

A Kempston compatible 9 way D joystick interface for Minstrel Expansion Bus

Designed by Tynemouth Software in United Kingdom

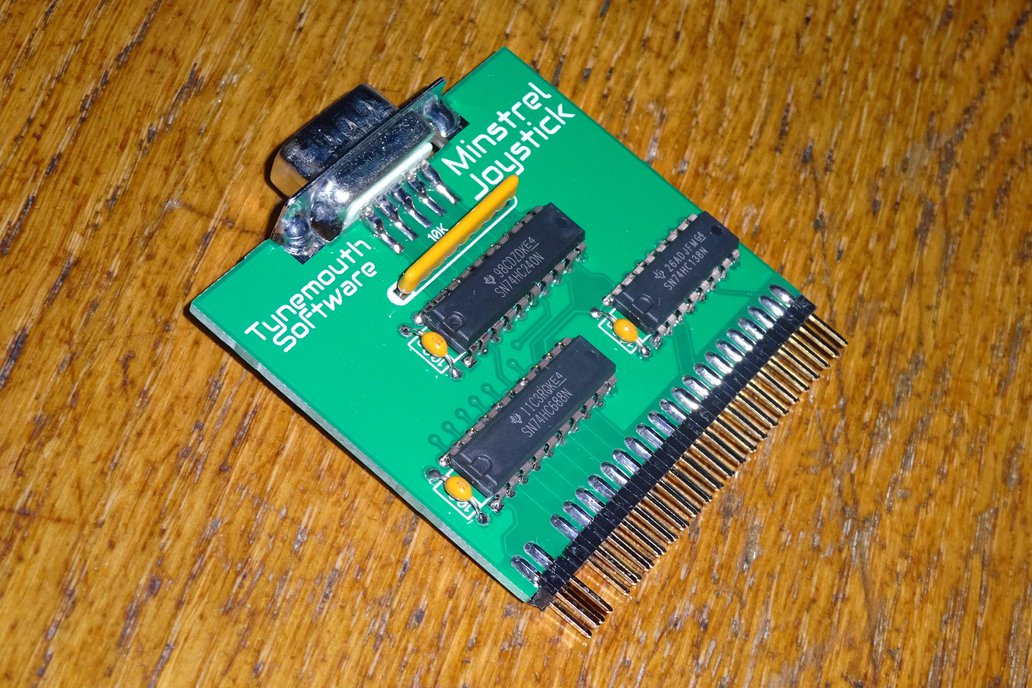

2025-04-11T15:38:58.056Z-Minstrel Joystick Assembled Angled.jpg

2025-04-11T15:38:58.056Z-Minstrel Joystick Assembled.jpg

2025-04-11T15:38:58.056Z-Minstrel Joystick Assembled Top.jpg

2025-04-11T15:38:58.056Z-Minstrel Joystick Kit Knolled.jpg

2025-04-11T15:38:58.056Z-Minstrel Joystick PCB.jpg

2025-04-11T15:38:58.056Z-Minstrel Joystick PCB Rear.jpg

2025-04-11T15:38:58.056Z-Micro Minstrel ZXpand, Minstrel Expansion Bus, Minstrel Joystick angled.jpg

2025-04-11T15:38:58.056Z-Micro Minstrel ZXpand, Minstrel Expansion Bus, Minstrel Joystick.jpg

2025-04-11T15:38:58.056Z-Micro Minstrel ZXpand, Minstrel Expansion Bus, Minstrel Joystick, Joystick.jpg

2025-04-11T15:38:58.056Z-Minstrel 3 with ZXpand and Minstrel Expansion Bus and cards.jpg

2025-04-11T15:38:58.056Z-Minstrel 3 with ZXpand and Minstrel Expansion Bus and cards angled.jpg

2025-04-11T15:38:58.056Z-ZX81 board with ZXpand and Minstrel Expansion Bus and cards angled.jpg

2025-04-11T15:38:58.056Z-ZX81 with Minstrel Joystick.jpg

2025-04-11T15:38:58.056Z-ZX81 with Minstrel Expansion Bus and RAM pack and cards.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

All items made in the UK and shipped from the UK. EU shipping is back, but there may still be issues with GPSR. US orders may be subject to tariffs.

A Kempston compatible 9 way D joystick interface for Minstrel Expansion Bus

What is it? This is Kempston compatible joystick for the Minstrel Expansion Bus for Minstrel 2 or 3 or ZX81. The address is fully decided as 31 (0x1F), and provides signals for the four directions as…

What is it?

This is Kempston compatible joystick for the Minstrel Expansion Bus for Minstrel 2 or 3 or ZX81.

The address is fully decided as 31 (0x1F), and provides signals for the four directions as well as fire and the two optional fire buttons.

This is supported on several games for the Minstrel 3 / ZX81, such as Paul Farrow's Kong and Pacman, and the newly released Minoss Knossoss from David Stephenson.

It can also be read from assembly programs, or BASIC programs with a few bytes of assembler in a REM statement (see documentation link for examples).

This auction is for the full kit to build a Joystick Module. No joysticks, expansion bus baseboards, computers or games are included.

Why did you make it?

I wanted to use a Kempston joystick on a Minstrel 3.

What makes it special?

This is available as a kit or assembled, and can be installed directly into the Minstrel Expansion Bus slot on a Minstrel 2 or 3, or into one of the slots on the Minstrel Expansion Bus backplane, or it can be fitted with an edge connector to use with a ZX81.
