PET Composite Video Out

Name: PET Composite Video Out
SKU: 36655
Price: 40.00 USD
Availability: InStock

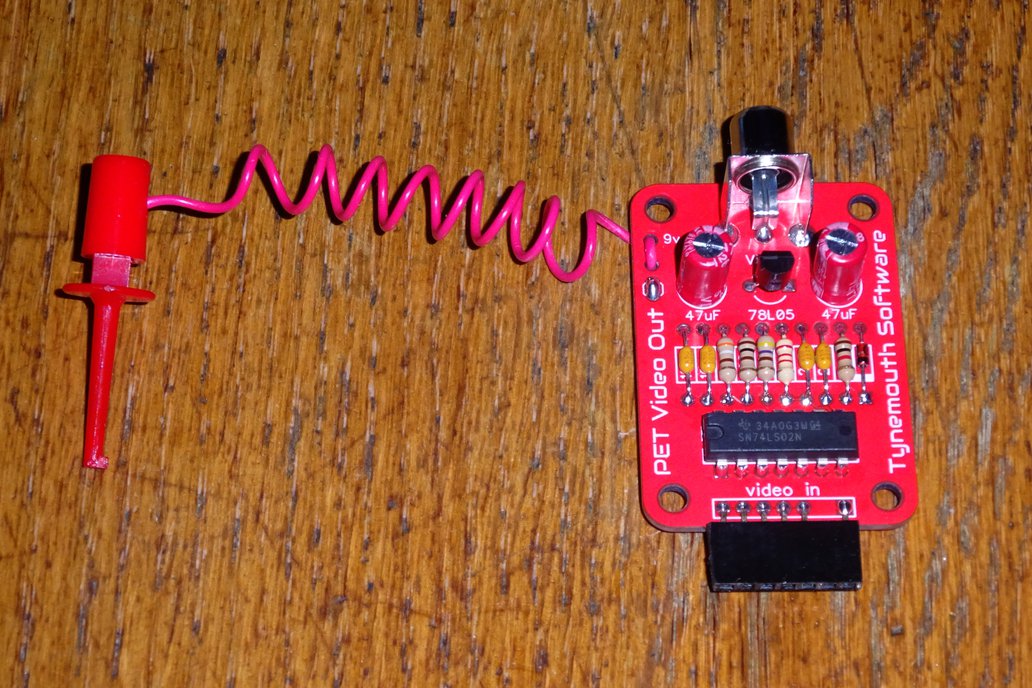

A board that plugs into the monitor socket of a non CRTC based Commodore PET to generate a composite video output.

Designed by Tynemouth Software in United Kingdom

2024-11-22T19:44:41.171Z-PET Video Out Side.jpg

2024-11-22T19:31:02.903Z-PET Video Out.jpg

2024-11-22T19:44:41.171Z-PET Composite Video.jpg

2024-11-22T19:31:02.903Z-PET Video Out installed.jpg

2024-11-22T19:31:02.903Z-PET Video Out installed with 9V clip.jpg

2024-11-22T19:31:02.903Z-PET Video out on PET 2001N.jpg

2024-11-22T19:31:02.903Z-PET 2001 with all the bells and whistles.jpg

2024-11-22T19:44:41.171Z-PET Composite Video on 4.3 inch LCD.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A board that plugs into the monitor socket of a non CRTC based Commodore PET to generate a composite video output.

What is it? This is board which plugs into the monitor connector of a PET board and provides a composite video signal for bench testing. Why did you make it? When bench testing, it can be more conven…

What is it?

This is board which plugs into the monitor connector of a PET board and provides a composite video signal for bench testing.

Why did you make it?

When bench testing, it can be more convenient to use a composite video monitor rather than the internal monitor of the Commodore PET.

What makes it special?

This will only work with PET 2001/2001N/30xx and 9" 40xx machines. It will not work on anything with a 6545 CRTC, as that will generate signals that do not match the timing required by most composite video monitors (although it is possible using a modified editor ROM, but that is left as an exercise for the reader).

The signal generated is NTSC, slightly shifted to the right. Not all modern monitors will cope with a composite signal that is missing a colour burst, although most do. Likewise many modern TVs and monitors will support NTSC composite, even in PAL regions.

The board is powered by clipping it to a 9V source, the polarity protection diode is normally a good option, see photos.

This listing includes the PET video module only. It does not include the PET 2001 board or any of the other things shown such as the Video RAM replacement, Character ROM replacement, PET ROM/RAM, PET Video, PET Dual Joystick with Piezo and SD2PET (all of which are available separately)
