PET IEEE-488 Diagnostics Tester

Name: PET IEEE-488 Diagnostics Tester
SKU: 36656
Price: 35.00 USD
Availability: InStock

This is a tester for the Commodre PET (or Mini PET) IEEE-488 port. This will show the 16 signals on the bus with LED indication.

Designed by Tynemouth Software in United Kingdom

2024-11-22T20:06:17.373Z-PET IEEE-488 Diagnostics power adapter.jpg

2024-11-22T20:06:17.373Z-PET IEEE-488 Diagnostics board.jpg

2024-11-22T20:06:17.373Z-I see no new IEEE-488 device.jpg

2024-11-22T20:06:17.373Z-PET IEEE-488 Diagnostics and Mini PET.jpg

2024-11-22T20:06:17.373Z-IEEE-488 testing.jpg

2024-11-22T20:06:17.373Z-All but IFC.jpg

2024-11-22T20:06:17.373Z-For loop running.jpg

2024-11-22T20:06:17.373Z-All LEDs on.jpg

2024-11-22T20:06:17.373Z-LEDs flashing.jpg

2024-11-22T20:06:17.373Z-SD2PET loading.jpg

2024-11-22T20:06:17.373Z-PET IEEE-488 kit knolled.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

This is a tester for the Commodre PET (or Mini PET) IEEE-488 port. This will show the 16 signals on the bus with LED indication.

What is it? This is a tester for the Commodre PET (or Mini PET) IEEE-488 port. This will show the 16 signals on the bus with LED indication. Each LED is lit when the corresponding signal is active (l…

What is it?

This is a tester for the Commodre PET (or Mini PET) IEEE-488 port. This will show the 16 signals on the bus with LED indication.

Each LED is lit when the corresponding signal is active (low).

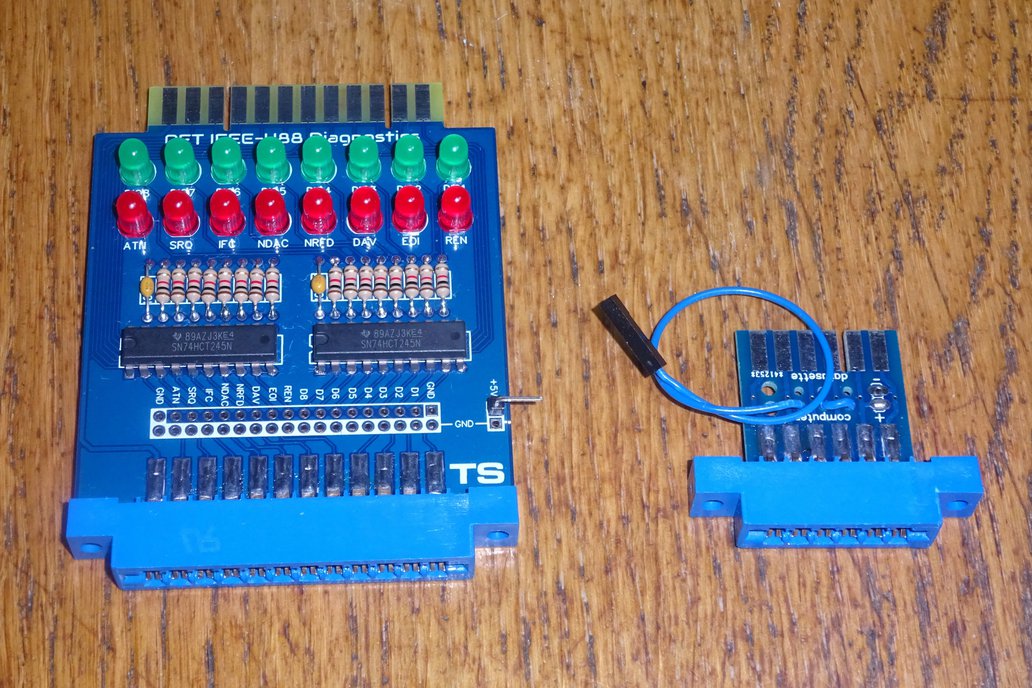

Power is supplied by a datasette port power tap (included).

Note, not suitable for 8xxx-SK model PETs with the GPIB style connector, only the original metal case PETs with a 24 way edge connector.

Why did you make it?

This is useful to test for faults on the IEEE-488 bus. You can use this to test if the signals are driving the port correctly. It can also be used to monitor activity on the bus to debug issues with IEEE_488 disk drives.

What makes it special?

This version include 16 individual LEDs to clearly display the 8 data signals and 8 control signals from the bus. The driver chips minimise loading on the bus.

This is available as a self assembly kit, or assembled and tested.

See this post on my blog for more information on using this board to diagnose faults - http://blog.tynemouthsoftware.co.uk/2023/10/pet-ieee-488-diagnostics-updated-version.html
