SD2PET Power Tap

Name: SD2PET Power Tap
SKU: 36657
Price: 10.00 USD
Availability: InStock

A board to allow 5V power to be tapped from the PET or Mini PET datasette port and still connect a datasette drive.

Designed by Tynemouth Software in United Kingdom

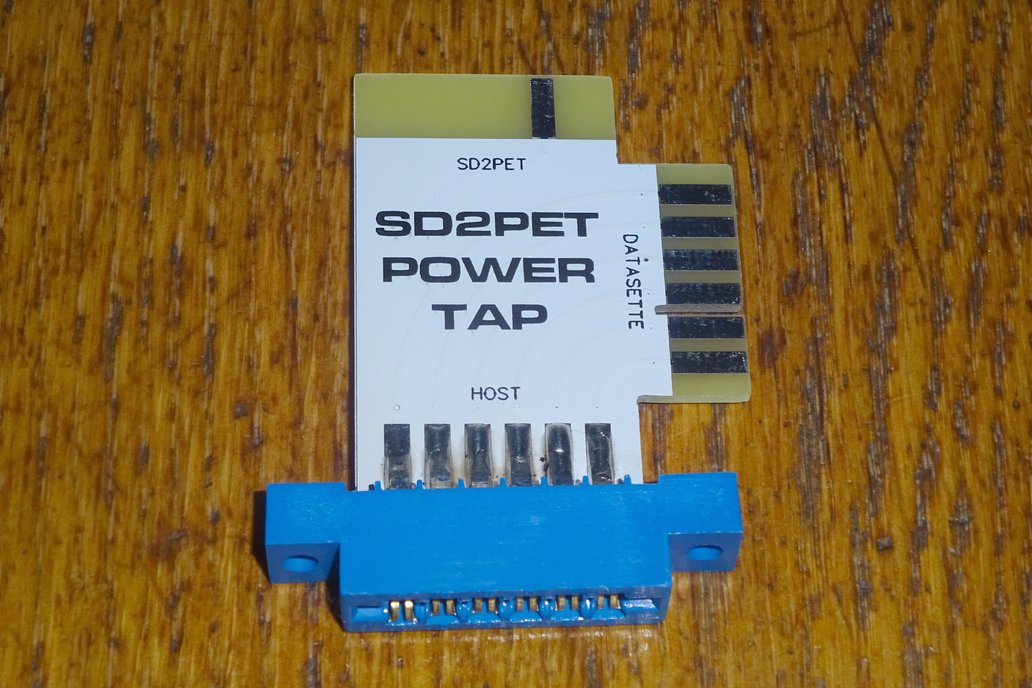

2024-11-22T20:49:38.761Z-SD2PET power tap assembled.jpg

2024-11-22T20:49:38.761Z-SD2PET power tap parts.jpg

2024-11-22T20:49:38.761Z-SD2PET power tap no connections.jpg

2024-11-22T20:49:38.761Z-SD2PET power tap connections.jpg

2024-11-22T20:49:38.761Z-SD2PET power tap with SD2PET.jpg

2024-11-22T20:49:38.761Z-SD2PET power tap with mini PET.jpg

2024-11-22T20:49:38.761Z-Mini PET, SD2PET, Power Tap, Datasette, Joystick.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A board to allow 5V power to be tapped from the PET or Mini PET datasette port and still connect a datasette drive.

What is it? This is a board to allow 5V power to be tapped from the PET or Mini PET datasette port whilst still allowing you to connect a datasette drive. Why did you make it? The SD2PET uses the dat…

What is it?

This is a board to allow 5V power to be tapped from the PET or Mini PET datasette port whilst still allowing you to connect a datasette drive.

Why did you make it?

The SD2PET uses the datasette #1 edge connector for power. This means that drive 1 is not available when you are using these.

What makes it special?

This allows the power to still be tapped from the back of the PET, but still gives a place to connect datasette #1.

Only the 5V signal is connected to the rear facing connector. All six signals are connected to the right facing connector for the datasette.

What is included?

This is available as a kit or assembled. No SD2PET or PET or Mini PET or datasette drive or anything else in the photos is included.
