UNIT Expansion Board for ESP32 30 Pins.

Name: UNIT Expansion Board for ESP32 30 Pins.
SKU: 36051
Price: 3.00 USD
Availability: InStock

The UNIT Expansion Board for ESP32 with 30 pins is a shield specifically designed for the ESP32 DEVKIT V1 development board.

Designed by UNIT Electronics in Mexico

UNIT Expansion Board for ESP32 30 Pins. 1

UNIT Expansion Board for ESP32 30 Pins. 2

UNIT Expansion Board for ESP32 30 Pins. 3

UNIT Expansion Board for ESP32 30 Pins. 4

UNIT Expansion Board for ESP32 30 Pins. 5

UNIT Expansion Board for ESP32 30 Pins. 6

UNIT Expansion Board for ESP32 30 Pins. 7

UNIT Expansion Board for ESP32 30 Pins. 8

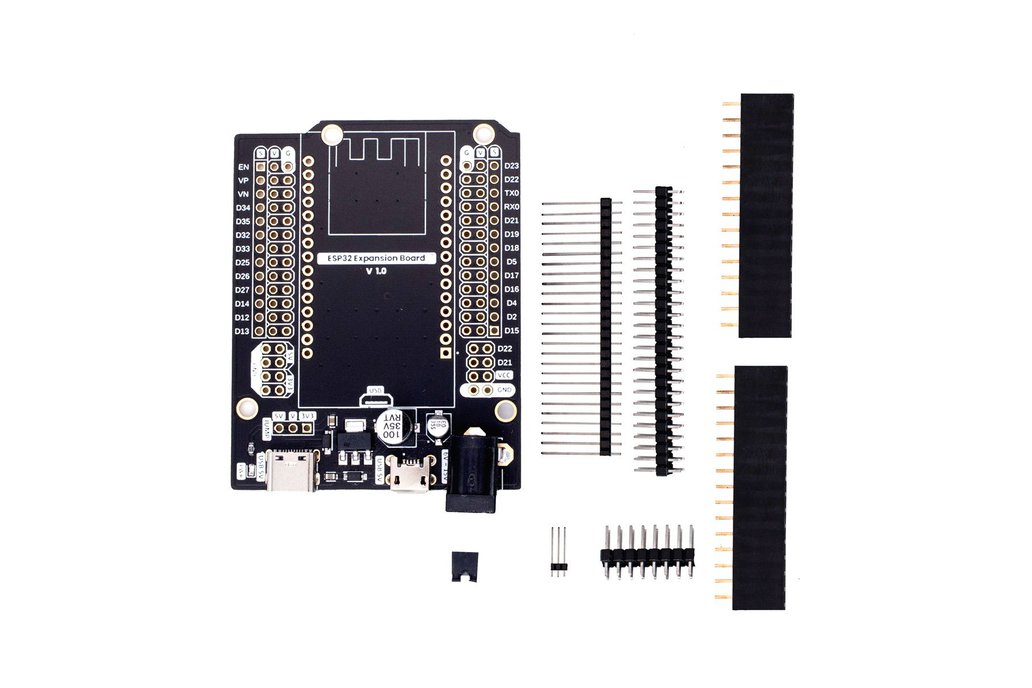

2024-10-13T18:59:06.713Z-AR3775 - UNIT Placa de Expansión para ESP32 30 Pines (8).jpg

2024-10-13T18:59:06.713Z-AR3775 - UNIT Placa de Expansión para ESP32 30 Pines (6).jpg

2024-10-13T18:59:06.713Z-AR3775 - UNIT Placa de Expansión para ESP32 30 Pines (2).jpg

2024-10-13T18:59:06.713Z-AR3775 - UNIT Placa de Expansión para ESP32 30 Pines (3).jpg

2024-10-13T18:59:06.713Z-AR3775 - UNIT Placa de Expansión para ESP32 30 Pines (9).jpg

2024-10-13T18:59:06.713Z-AR3775 - UNIT Placa de Expansión para ESP32 30 Pines (5).jpg

2024-10-13T18:59:06.713Z-AR3775 - UNIT Placa de Expansión para ESP32 30 Pines (4).jpg

2024-10-13T18:59:06.713Z-AR3775 - UNIT Placa de Expansión para ESP32 30 Pines (7).jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

The UNIT Expansion Board for ESP32 with 30 pins is a shield specifically designed for the ESP32 DEVKIT V1 development board.

INFORMATION The UNIT Expansion Board for ESP32 with 30 pins is a shield specifically designed for the ESP32 DEVKIT V1 development board, aiming to simplify connections with sensors, actuators, and other electronic modules. This shield expands the input/output (I/O) ports and pins, providing greater versatility for your IoT (Internet of Things) projects.

In addition to offering an I/O pin extension, this shield supports various power supply options. You can power it via the Micro-USB connector, the USB Type-C connector, or the DC Power Jack. However, to program the ESP32 board, you must use the USB port integrated into the ESP32. This flexibility in power supply ensures an adequate power source for your devices and projects.

SPECIFICATIONS AND FEATURES Brand: UNIT Electronics Model: ESP32 Expansion Board V1.0 PCB Color: Black Dimensions: 66 x 47.3 mm Weight: 22.82g Voltage Regulator: LD1117S50CTR Operating Voltage: 3.3V Power Supply:

•   Micro-USB: 5V DC
•   USB Type-C: 5V DC
•   PWR Jack: 6V to 15V DC
•   VCC: 6V to 15V DC

Maximum Input Current: 800mA Switch Jumper: Voltage output selection (V) of 3.3V or 5V I/O Extension Interface (GVS): • G: GND pins • V: Output voltage corresponding to the Switch Jumper setting • S: GPIO input and output pins Power LED I2C Interface: SCL GPIO22 and SDA GPIO21 Voltage Output Interface: 3.3V x 2 and 5V x 2 Application: IoT Practices
